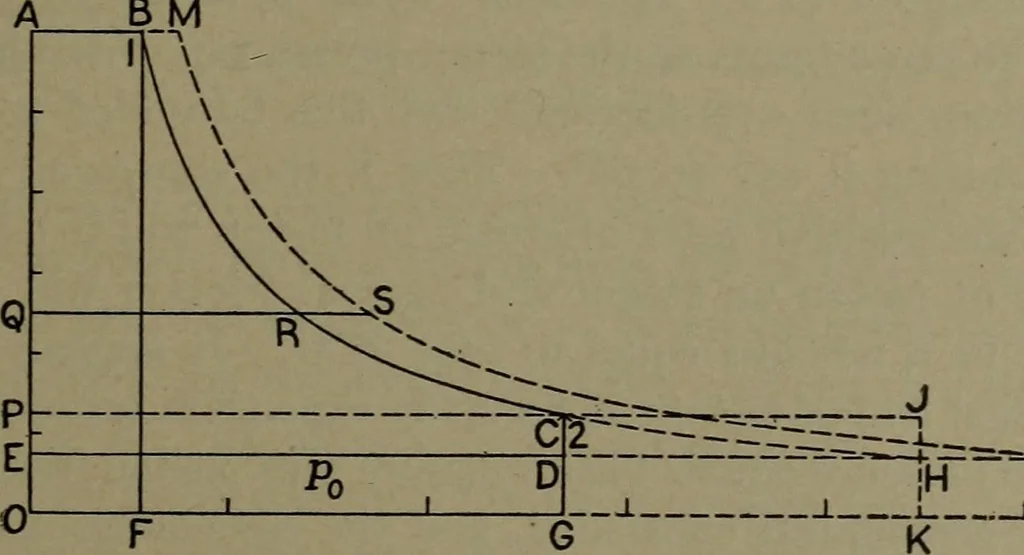

of heat which the steam receives from thecylinder as the pressure is lowered, the expansion curve usually approxi-mates quite fairly to the curve pv = C — this fact being wholly a matterof experience, not deducible by a priori reasoning. Of course, the exactform of the curve varies considerably… … 1 Fig. 57. — The Steam-engine Cycle, in Comparison with the Rankdne Cycle.See § 15 (e) and Example 16. (/) The Ideal Steam Diagram. — In Fig. 57, the effective initialvolume AB is determined, from the full volume AM, by the percentageor fraction of initial condensation, for which ratio AM is the…
