The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 182

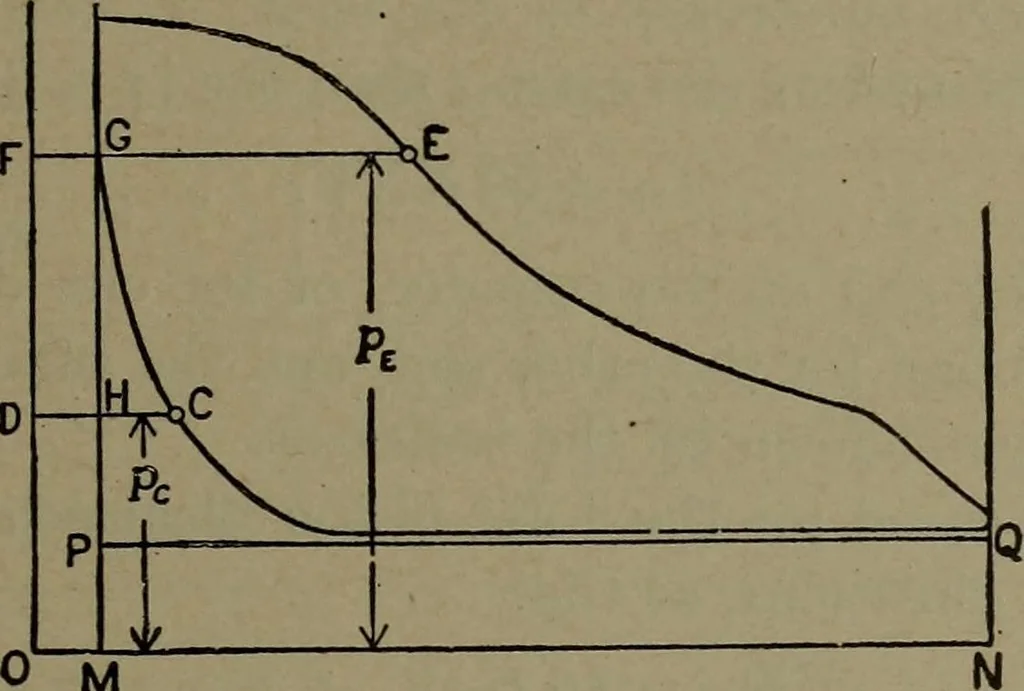

1249 14.2211.75 44.8 t36.7 J 81.5 L. C § 21 (e)J HORSE POWER AND STEAM CONSUMPTION. 165 (e) Indicated Steam Consumption. — The data needed for calcu-lating this quantity are outlined on Fig. 85, and the method of pro-cedure will now be described. When the piston is at the position definedby the… … 0 M Fig. 85. — Data for Indicated Steam Consumption. piston displacement V, which on the diagram is represented by thestroke line M.N. The relations involved are FE 6 MN Ve = e7cu. ft.; and the weight of steam (vapor alone) present in the cylinder at E is we = — = - X V. Sq Sq This measures the…
Steam-engines · Steam-turbines
