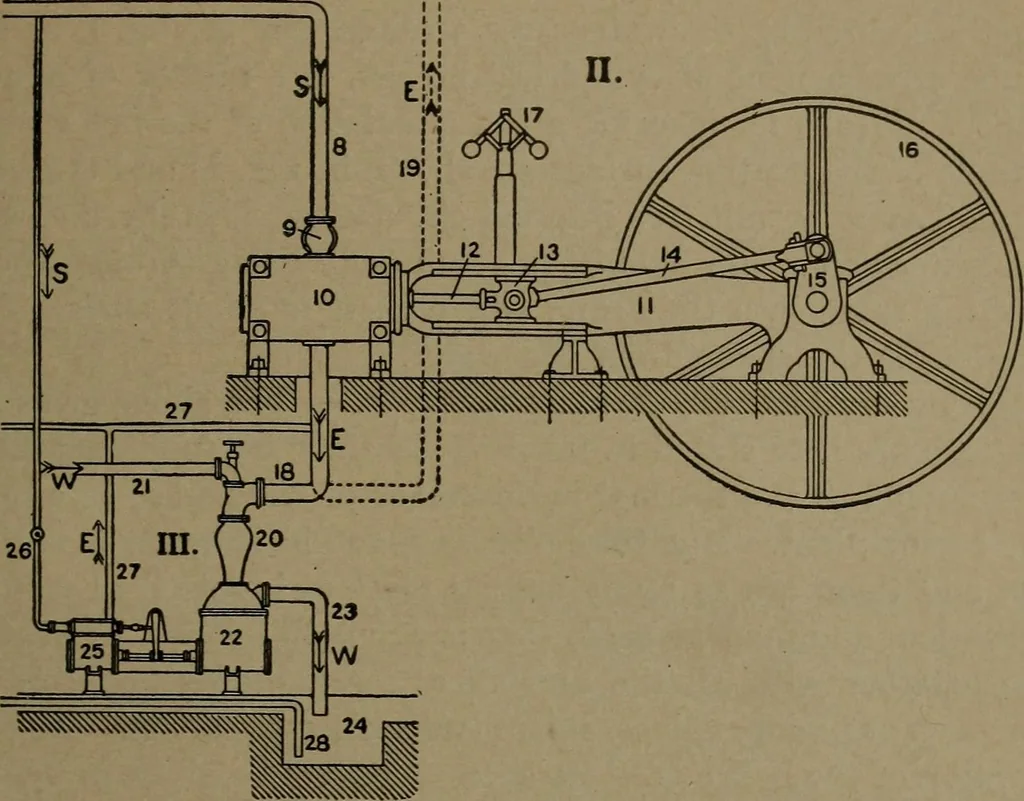

cient space above the fire, in which combustiblegases from the solid fuel can be completely burned before they are cooledbelow the ignition temperature by contact with the relatively coldsurfaces of the boiler. In Fig. 1, these requirements are met by thegrate, ash pit, and fire space, with the… … Fig. 1. — The Steam Plant. B. Engine and Condenser. Ill Condenser and Pump (Jet or mixing type). 20. Condensing chamber. 24. Hot well. 21. Cold-water supply. 25. Steam cylinders. 22. Pump cylinders. 26. Steam pipe to pump 23. Discharge pipe. 27. Exhaust pipe. IV The Feed Pump (Separate,…
