The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 201

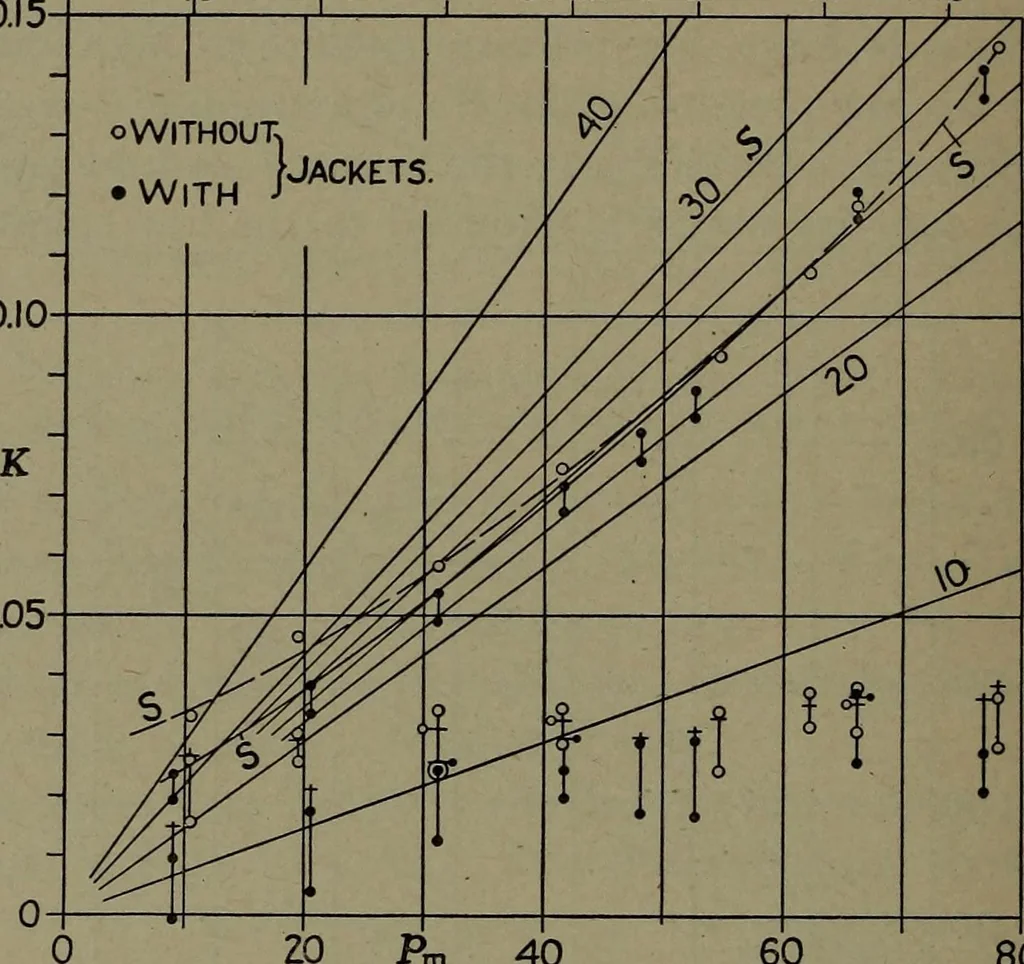

Fig. 95, is complicated by the addition of testsmade with the jacket, which are plotted as in Fig. 88. Unjacketed,Kmi and Kmc agree quite well. With the jackets (on heads and sides),it appears that at late cut-offs the saving in condensation within the 184 ACTION OF THE STEAM IN THE ENGINE. [Chap.… … 0.05 Pm 40 60 80 Fig. 95. — Tests without and with Jackets, 9 by 36 in. Corliss Engine, speed about85 r.p.m., initial pressure 112 lb. abs., exhaust pressure 6 lb. abs. (these arepressures in the cylinder — the engine was run condensing, but with a poorvacuum). High-pressure section (alone) of the…
Steam-engines · Steam-turbines
