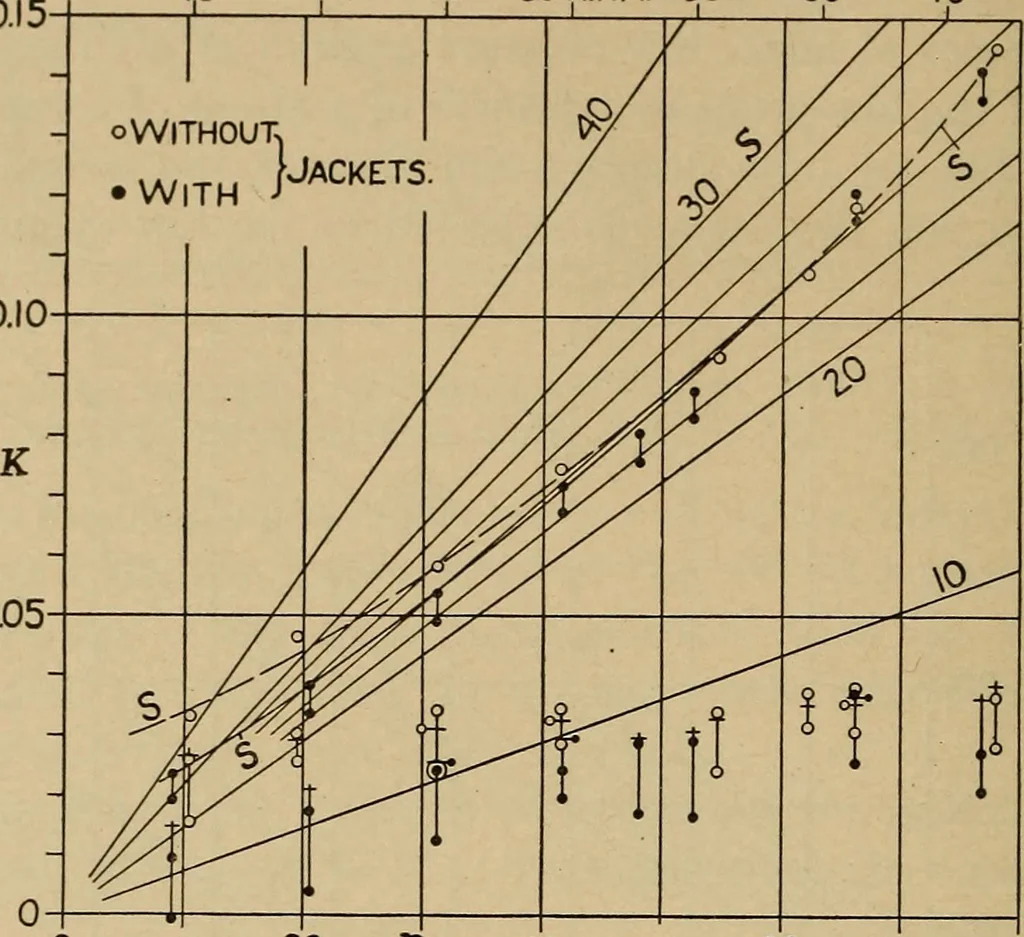

is complicated by the addition of testsmade with the jacket, which are plotted as in Fig. 88, Unjacketed,Xmf and i^mc agree quite well. With the jackets (on heads and sides),it appears that at late cut-offs the saving in condensation within the 184 ACTION OF THE STEAM IN THE ENGINE. [Chap. V.… … 0.05 0 20 Pm 40 60 80 Fig. 95. — Tests without and with Jackets, 9 by 36 in. Corliss Engine, speed about85 r.p.m., initial pressure 112 lb. abs., exhaust pressure 6 lb. abs. (these arepressures in the cylinder — the engine was run condensing, but with a poorvacuum). High-pressure section (alone) of…
