The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 204

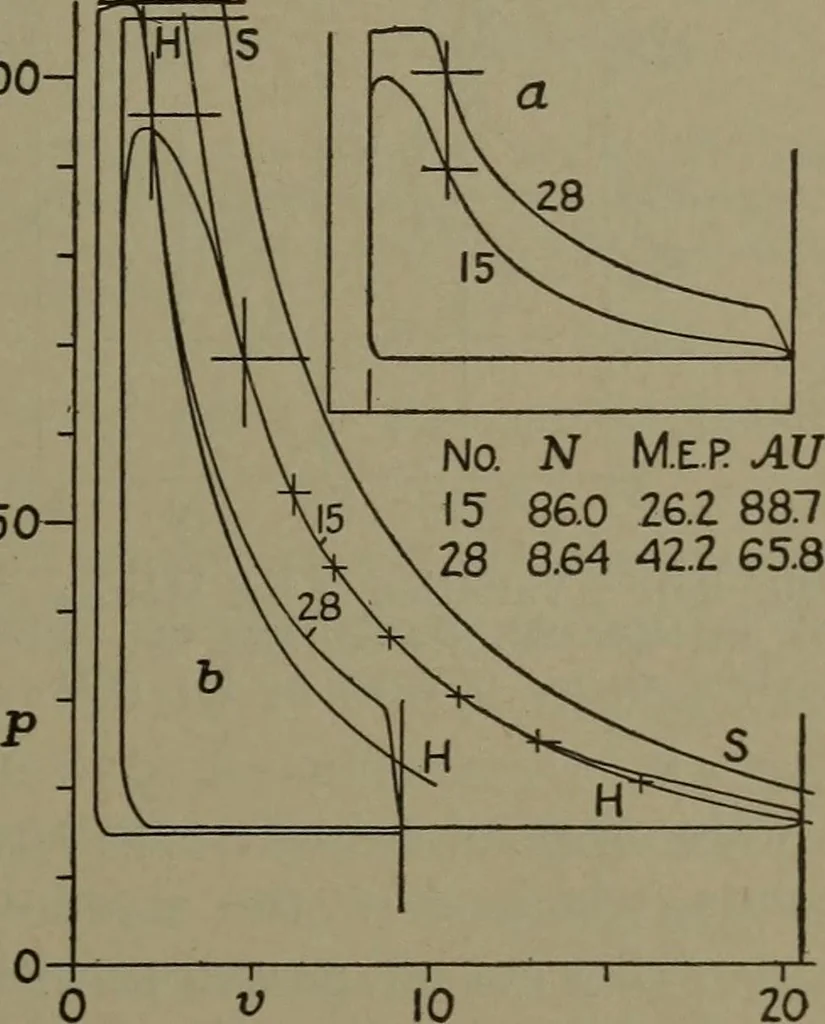

Fig. 98. — Unit Diagrams from Engineof Figs. 87 and 90, showing effectof throttling. Test 1 from Fig. 90;in tests 33, 34, and 35, cut-off is at0.875 of the stroke. 100- … 50- Fig. 99. — Diagrams from Engine ofFigs. 87 and 90, showing effect ofspeed. (i) Effect of Speed. — This is strikingly shown in Fig. 99, withspeeds in the ratio of 10 to 1. The valve action is the same in bothcases, but at the low speed much more steam is admitted and a fullerdiagram and higher…
Steam-engines · Steam-turbines
