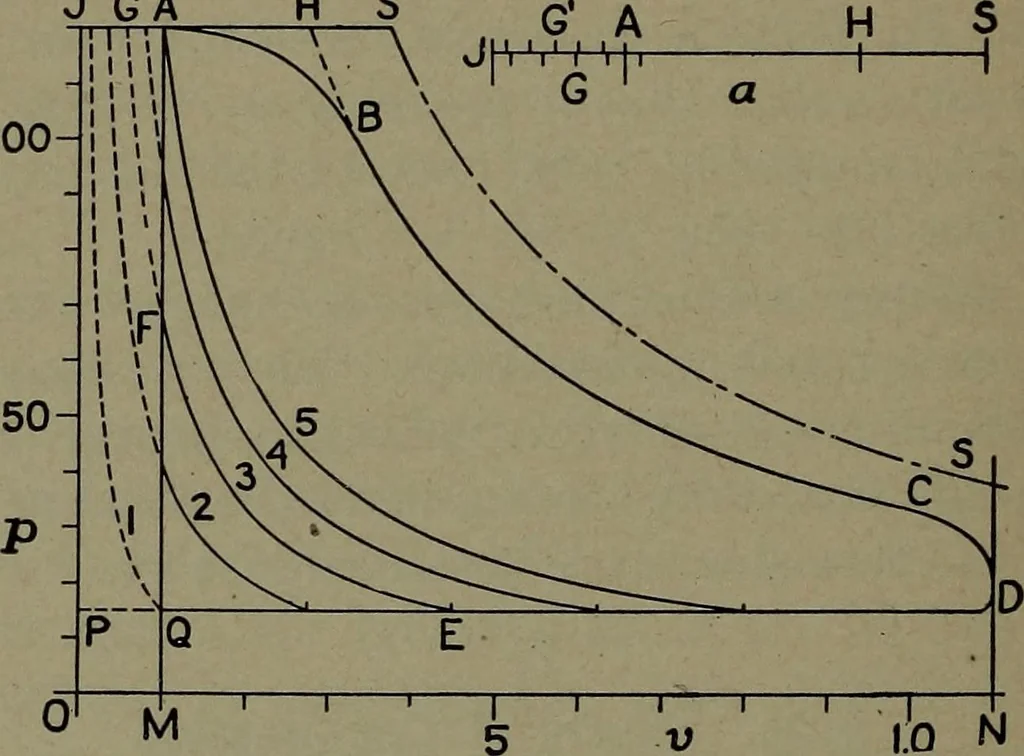

hich will show the best possibleor imaginable result from the use of compression. The modification * This would not be the same as the adiabatic compression of the whole chargein the Carnot cycle. . 200 ACTION OF THE STEAM IN THE ENGINE. [Chap. V. by wall action will then be introduced, leading to… … Fig. 107. — Steam Diagram with Variable Compression. by changing the amount of compression, with equal increments, fromzero to enough to raise the terminal point F up to the initial pressureat A: for convenience, curves BC and EF are of the form pv = C. Thediagram is drawn to scale for one pound of…
