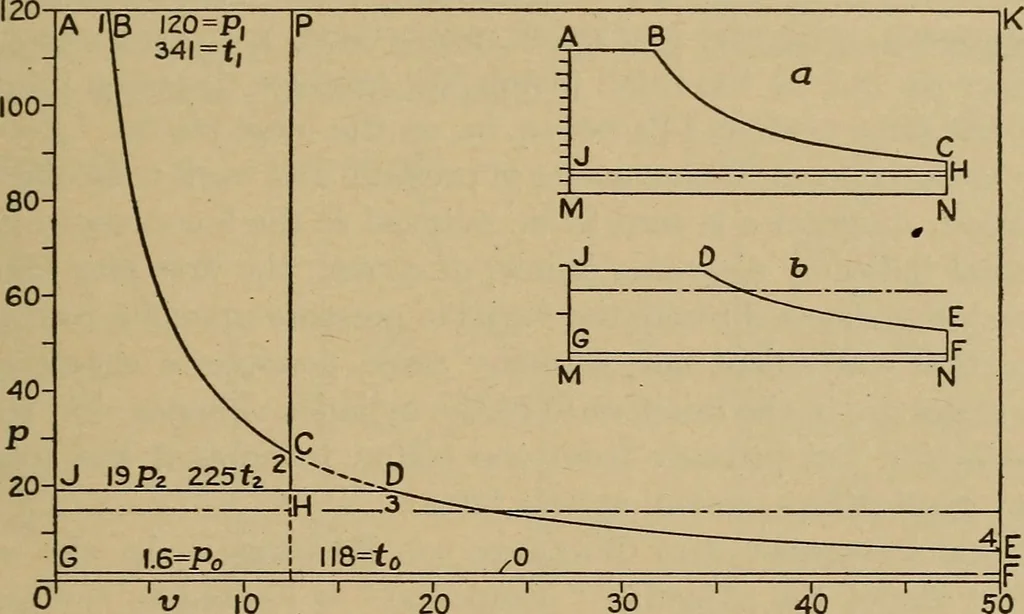

he re-ceiver, now assumed to be so large that the pressure within it shows nocyclical fluctuation, due to the inflow and outflow of steam, but remainsconstant at the value represented by the height of line JD. The. sameconsiderations that demand and justify incomplete expansion for thewhole engine… … 20 30 40 Fig. 76. — Ideal Diagram for the Compound Engine. 50 matter of judgment, involving as it does the sacrifice of the work-areaCDH, through the pressure drop CH, which is called ^receiver drop. The objects attained by this scheme for the effective utilization ofa high ratio of expansion are,…
