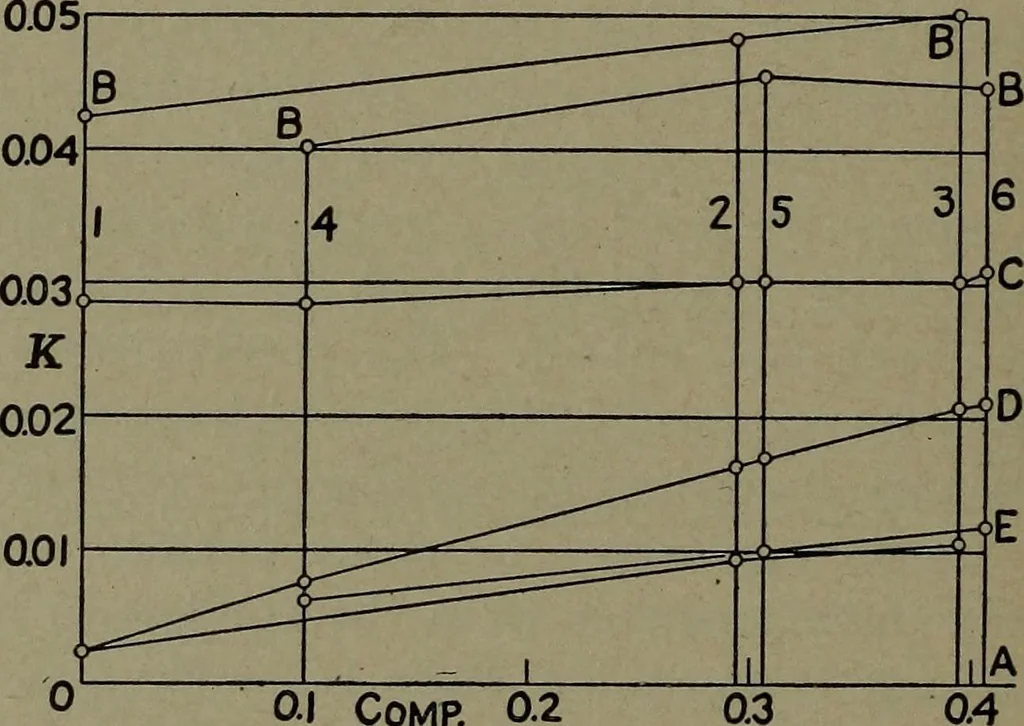

fectivevalue. CB is the total initial condensation, with the comparatively small 204 ACTION OF THE STEAM IN THE ENGINE. [Chap. V. variation just noted: the ratio m = CB/AB is more nearly constantthan CB itself. AE is the indicated clearance steam at the end of compression, orat the point F in Fig.… … 0.1 Comp. 0.2 Fig. 110. — Steam-quantity Diagram of the Dwelshauvers-Dery compression tests.In tests 1, 2, 3, r.p.m. = 45, in 4, 5, 6, r.p.m. = 61. It would naturally be expected that with earlier compression theamount of steam condensed by the cylinder walls will increase, becausethe time during…
