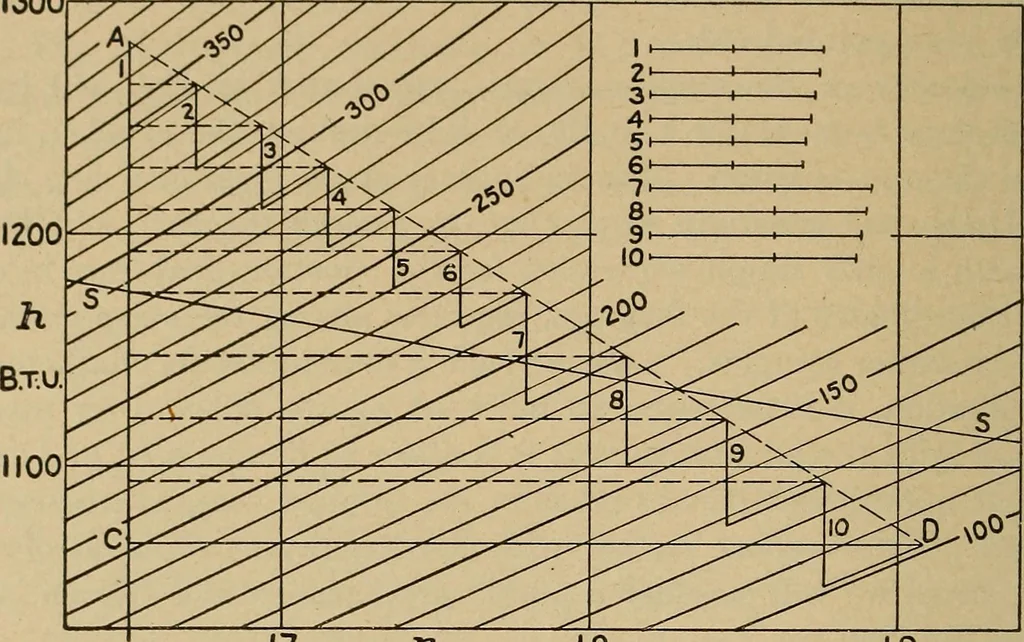

lation among them, is to substitute asUghtly curved fine for the straight locus AD: this will be concaveupward, or will sag below AD, and will be used with the same skeletonof horizontals, from the same division points on AC. The shape of 508 DESIGN AND CONSTRUCTION OF THE TURBINE. [Chap. X. curve… … 1.7 Fig. 351 n 1.8 — Diagram for Ten Stages. trial is still necessary, but the operation has now as little as possible ofthe random element. (e) Form of the Mollier Diagram. — If the constant-pressurelines were parallel, the scheme of Fig. 350 would make all the stagesahke, establishing a constant…
