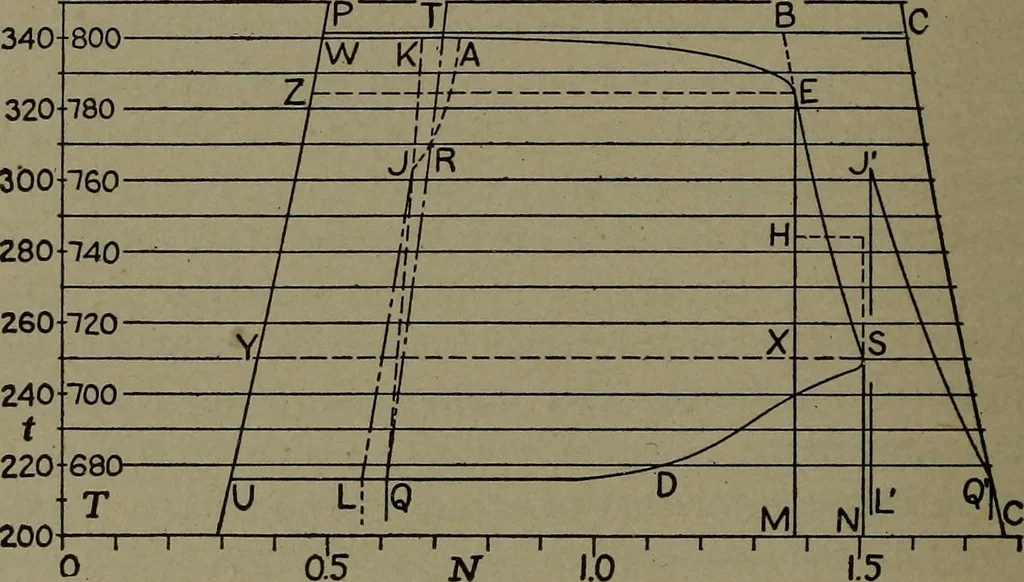

up to the walls would be the difference 214 ACTION OF THE STEAM IN THE ENGINE. [Chap. V. between the area under UPC and that under UWAE — these areasbeing bounded by vertical ordinate lines from U, C, and E, and ex-tending down to the line of absolute zero of temperature. The effectof compression,… … Fig. 116. — Temperature-entropy Diagram from Fig. 115. As to the heat restored during expansion, the obvious thing is toget the value of the area under ES. By planimeter measurement ofarea ESX, the top of an equivalent rectangle is located at H, at 744deg. absolute. The entropy width MN, measuring…
