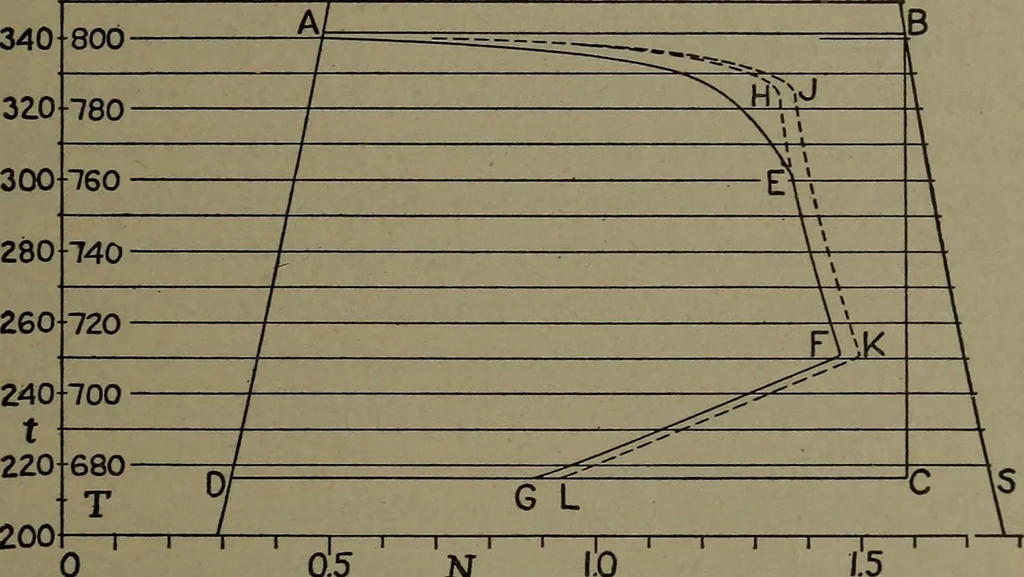

ram ofthe clearance steam, after the manner of Fig. 111. In this particularcase, G is a point on a constant steam-weight curve from Q, like QRTin Fig. 115, and represents the full, dry volume of the clearance steam.;similarly, V is a point on the one-pound curve for the total steam, thereCC. The… … 200 0 0:5 N 10 Fig. 118. — Temperature-Entropy Diagram for the Working Steam. left-hand end on the diagram, the right-hand end being always on thecurve AESD. Curve AJSQ corresponds to AJQ, LHSQ to KJQ,and KHSR to LHR. With ratios read from these curves andapplied to the vaporization entropy b, the…
