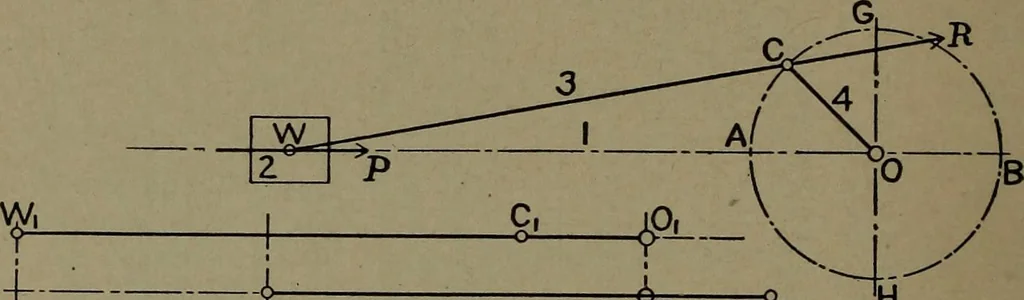

OF THE SUBJECT. [Chap. I. in Fig. 4 to a simple block around the wrist pin, is the work-receivingmember, upon which acts the steam force P. Transmitted by theconnecting rod to the crank pin as R (with some modification), thisforce turns the crank against the external load-resistance. The effectof… … W2 ro2 C2 Fig. 4. — The Engine Mechanism, and Principal Driving Forces.1. Frame. W. Wrist pin. 2. Piston slide. 3. Connecting rod. 4. Crank. C.O. Crank pin.Shaft. force. In some types of engines, however, the motion of the piston isapplied directly to the useful resistance — as in pumps,…
