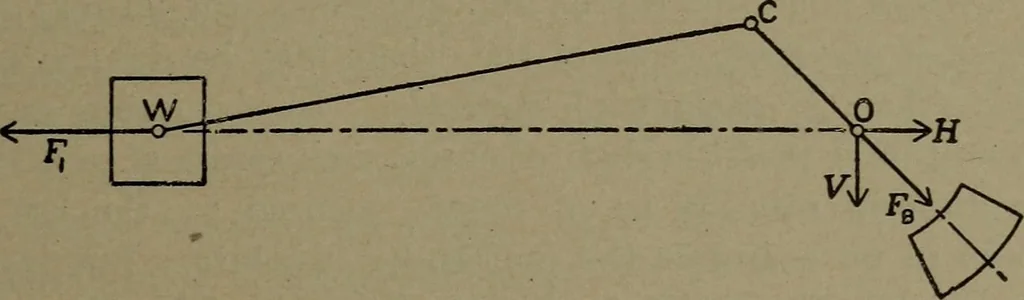

reactionagainst, the moment TR produced by the steam pressure upon thecrank. It is through this couple that the load torque is felt by theengine bed. If the load force, like L in Fig. 155, is steady and uniform, it simplydevelops a stress in the foundation bolts, which can easily be providedfor.… … Fig. 157. — Effect of the Counterbalance. pin: resolving its centrifugal force Fb into horizontal components Hand V, we see that the former acts against Fh reducing the free hori-zontal force to (Fi — H). Of course, this introduces a free, variantvertical force V; and the proper relative magnitude…
