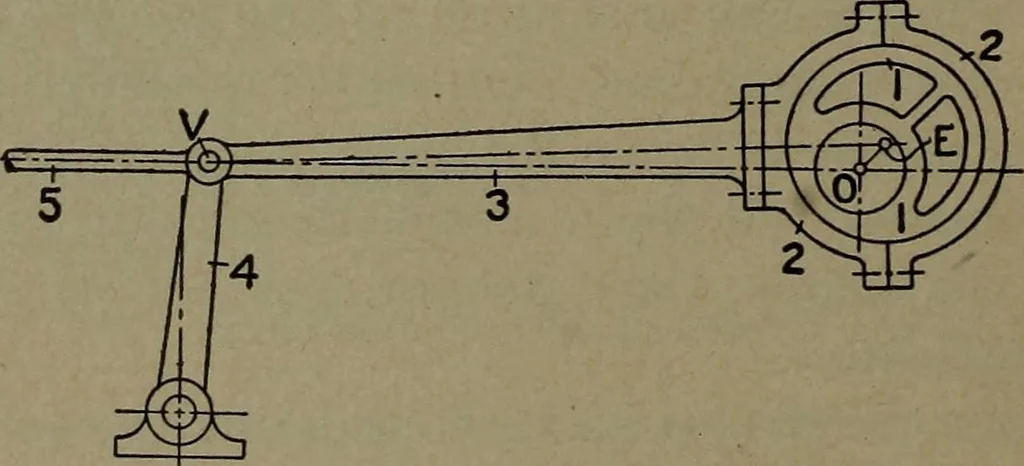

flow offered by the pipes, valve, and ports.In a condensing engine, DE will be well below MN, but yet a littleabove the pressure in the condenser. The diagram in Fig. 11 shows the action in one end of the cylinder,or the pressure exerted upon one side of the piston; a correspondingdiagram, reversed… … Fig. 12. — The Valve-gear Mechanism.O. Center of shaft. E. Center of eccentric. 1. Eccentric disc or sheave. 4. Rocker arm. 2. Eccentric strap. 5. Valve rod. 3. Eccentric rod. (k) The Valve Gear. — In the case of the main engine mechanism,we start with the reciprocating piston and transmit work to…
