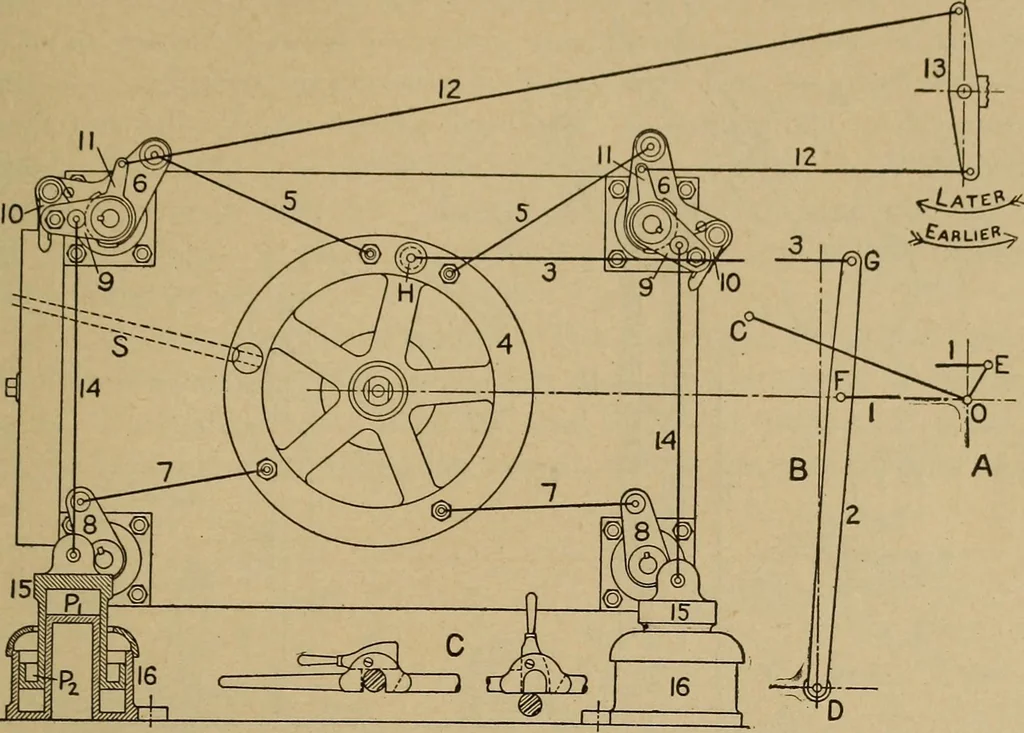

Fig. 266. — Cross Section of the Cyhnder in Fig. 265. Upper right-hand quartertaken at mid-length, the rest of the section through the head-end ports. The rerfult sought- and obtained is, that the valve shall have a widerand quicker movement in the direction for opening, a shorter andslower… … Fig. 267. — Corliss Valve Gear, Single-eccentric Type, with Full Wrist Plate. 1. Eccentric rod. 6. Oscillating cranks. 12. Governor rods. 2. Rocker arm. 7. Exhaust-valve rods. 13. Governor rocker. 3. Reach rod. 8. Exhaust-valve arms. 14. Dashpot rod. 4. Wrist plate. 9. Steam-valve arms. 15. Dashpot…
