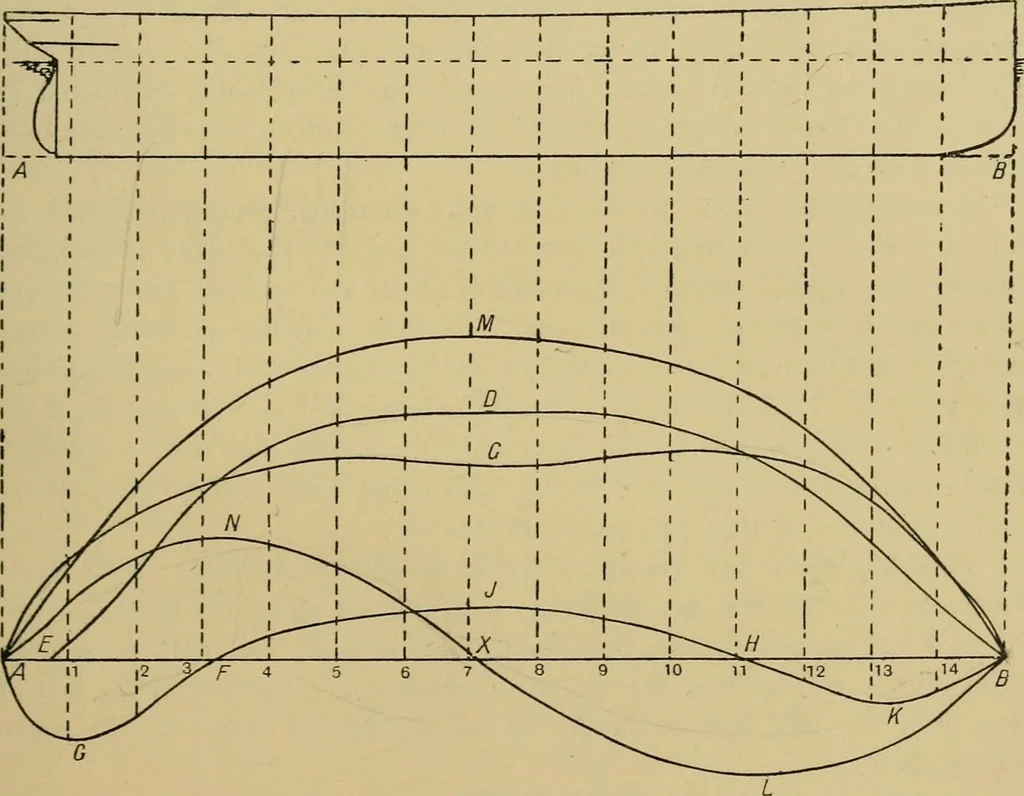

shown how to obtain the moment of inerti:i, and thebending moment of a loaded bar or girder of plain section, it is found,on turning to an actual ship, that though the labour of calculation isconsiderably increased, the principles worked upon, and the steps in thecalculation, are practically… … Fig. 43. ACB = Ci irve of Weights. EDB !> Buoyancy. AGJKB = J) Loads. A N L B = J) Shearing Forces. A MB Bending Moments especially in a cargo-carrying vessel, according as to whether the vesselis ballasted, light, or in a loaded condition. For the sake of example,let us suppose that fig. 43…
