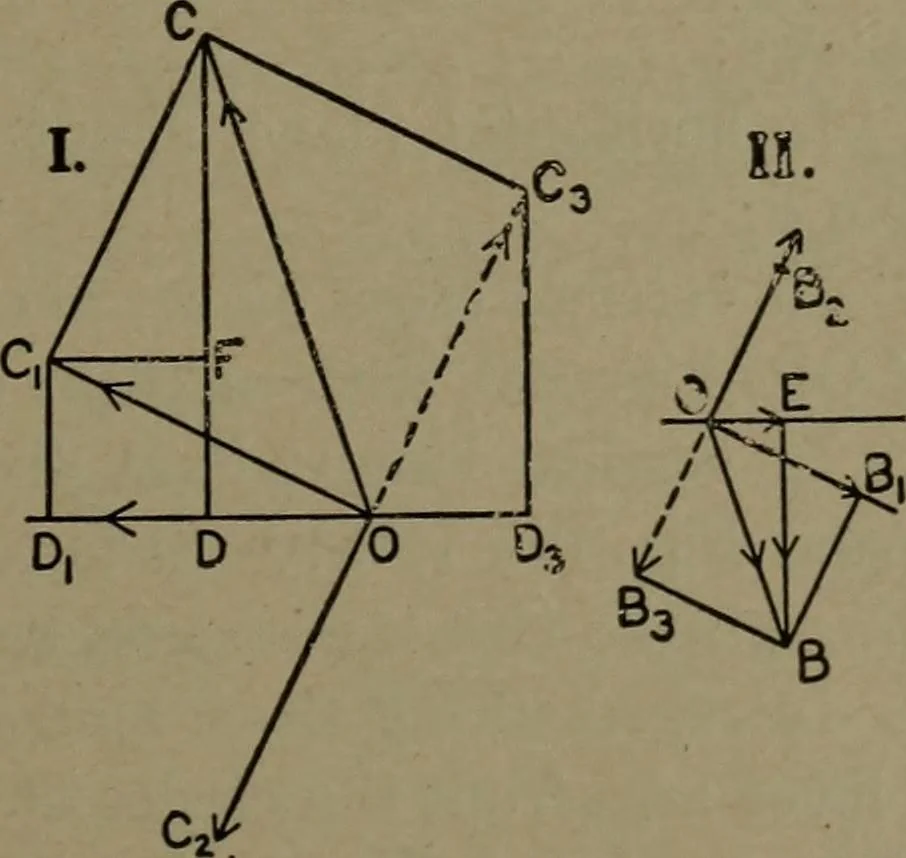

comesinto the line of Fi: then the algebraicsum of the two forces in this position— which is the same as their alge-braic difference with F2 in its actualdirection — is a resultant free forceacting at the end of the radius a togive the engine an angular accelera-tion about a vertical axis through… … Fig. 196. — Radial Twisting Effects. sin a) -\-2jFq cos 2 a, (200) 340 WORKING AND CONSTRUCTION OF THE ENGINE. [Chap. VII. In Fig. 196, the reversal of F2 in bringing it into the line of Fi isrepresented by the reversal of the F0 for the left side, from OC2 to OC3: then the major part of the force…
