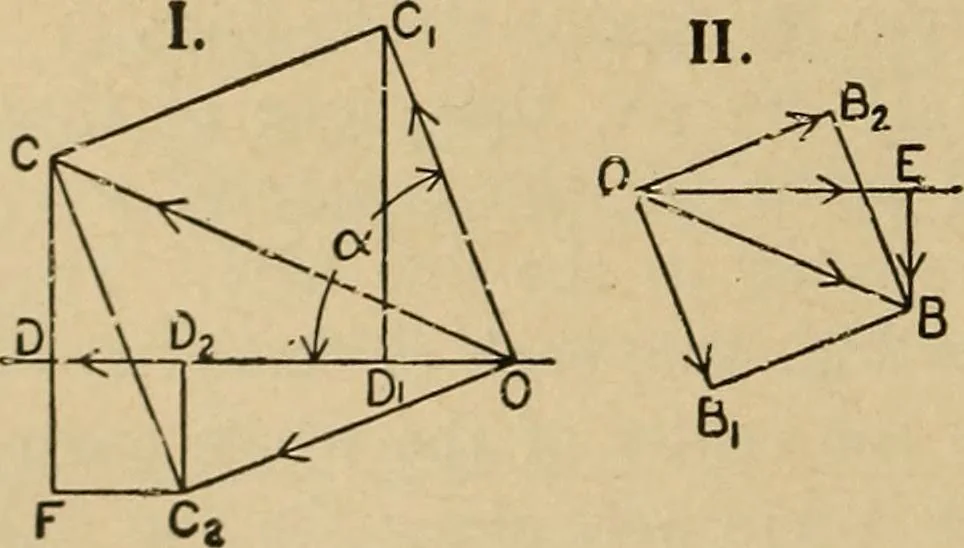

deal radial force, so also is thesum of these two, Fo (cos a + sin a), the horizontal component of asingle radial force, which force is the resultant of the two T^os. This isproven in Fig. 194, where OCi and OC2 are the respective Fqs, and OCis their resultant: then DOCi is a, and ODi = Fo cos a,… … 45°). . (199) The two count erf orces, shifted to the center plane and represented by OBi and OB2 in Fig. 194 II, can hke- wise be replaced by a single resultant OB, whose horizontal component OE will oppose OD, while the vertical component EB will be a free shaking force. The results of this…
