The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 385

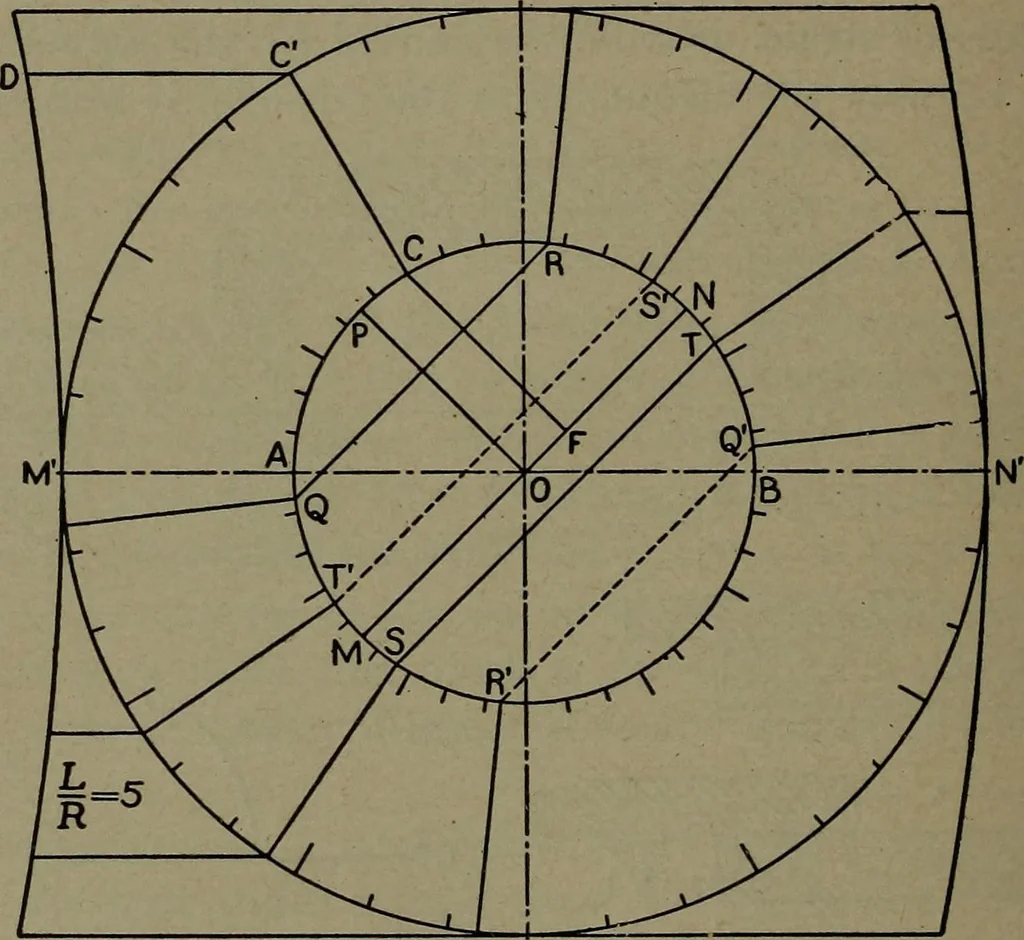

r curve. The lap lines are now drawn parallel to MN: and thefour events, admission, cut-off, release, and compression, are located bythe intersections marked A. B, C, and D, respectively. Dotted linesand primed letters are for the crank end of the cylinder. 368 VALVE GEARS AND GOVERNORS. [Chap.… … Fig. 224. — Combined Diagrams for Valve and Piston. — which is shown by the distance from Q to the point where the curveis tangent to the end line — almost to zero at the head end, while nearlydoubling it at the crank end, besides changing the widths of the port
Steam-engines · Steam-turbines
