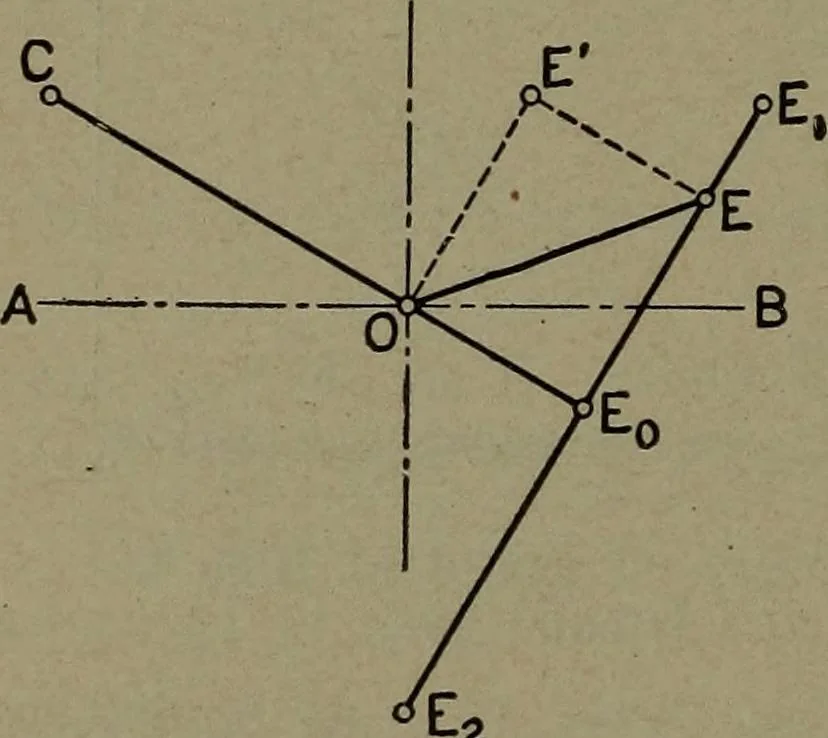

rst produce a recipro-cating motion from the eccentric OE0, and then add to this the motionfrom OE; the combined effect will be that of the resultant arm OE.The center E0 is almost never an actual driving point, at the shaft, butthe movement that would be given by OE0 is derived from the maincrank… … § 40 (/)] REVERSING VALVE GEARS. 389 for the OE component there mayor may not be an actual eccentric at theshaft. A couple of examples will illustrate the working out of the idea.(g) The Walschaert Gear. — In Europe this is the most com-monly used valve gear for locomotives, and it has been coming…
