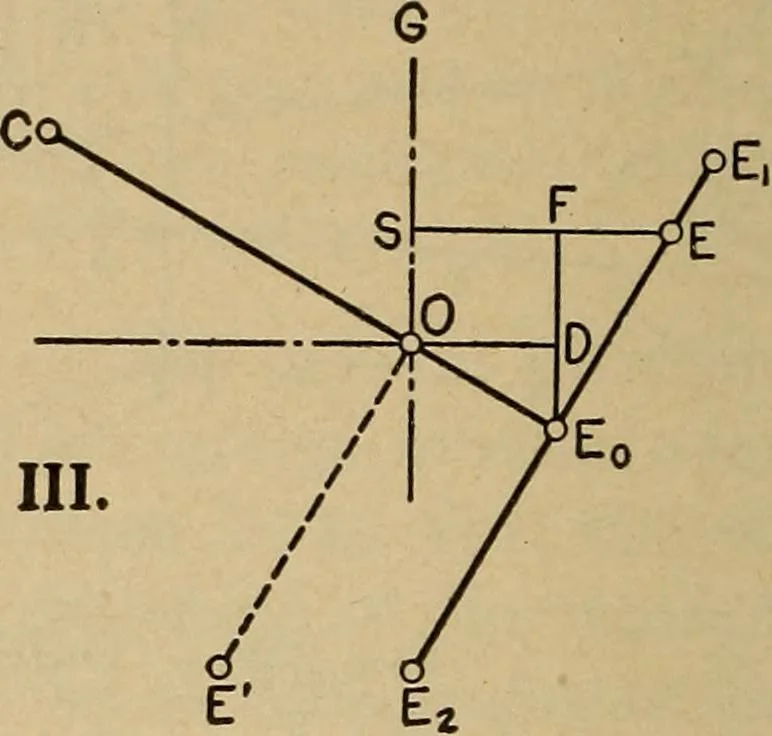

Fig. 251. — Derivation of Equivalent Eccentric, Walschaert Gear. at Ho, and KL is the final position when H has been given the dis-placement HoH = BoB. For the lever 6, let LH DK ,, . . HK HK m, then the displacement LqLi is equivalent to that from an eccentricOEo (at III) of the length Tq = mR.…
