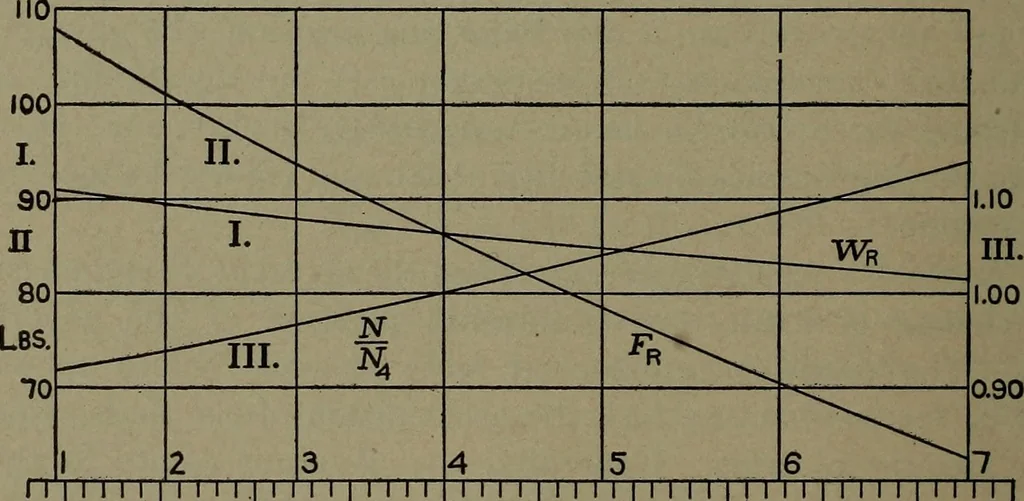

Fig. 292. — Types of the Fly-ball Governor: I. Common Low-speed Governor;II. High-speed Governor, Weight-loaded; III. The Proell Type. selves. No. II runs at high rotary speed, hence the balls are smalland most of the counterforce is furnished by the big central weight.No. Ill is a prominent German… … lit ii i i fiiiiIiii i I i i i i—iiii|iiiiiiii iIiiiiIi i ii | i i>2 Ins. i o l| l2 Fig. 293. — Curves of Regulation for Governor in Fig. 268. To show how the general relations in Art. (6) work out for a par-ticular case, results from the analysis of the governor in Fig. 268 aregiven in Fig.…
