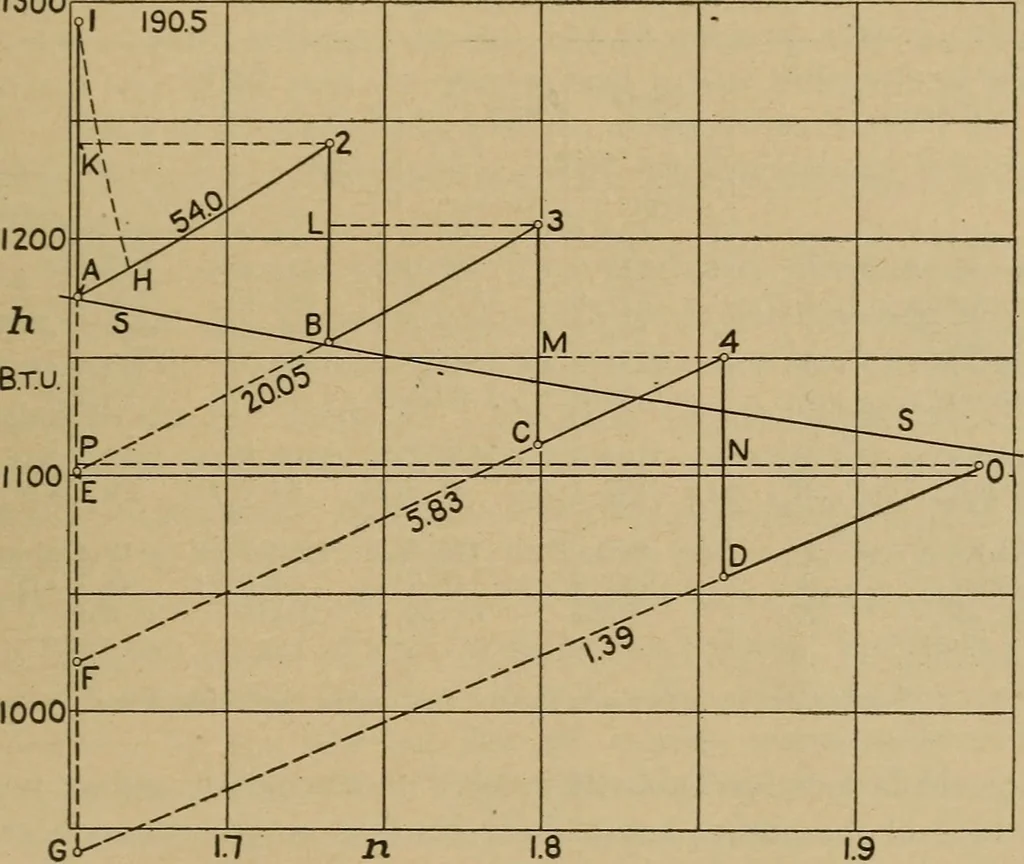

ilar to the Curtis machine in Fig. 23;but it is much smaller and is horizontal instead of vertical. A specialfeature is the control (by hand) of the number of nozzles open forpassage of steam in the three diaphragms between wheels. In Fig. 348, line lA represents adiabatic expansion in the… … Fig. 348. — Mollier Diagram from 450 Kw. Four-stage Schulz Turbine, Test 34.2in Table 20. Steam per brake horse-power-hour, *Sh = 13.77 lb.; work outputper pound of steam, W = 184.8 B.t.u. Other data, with calculated quantitiesin Table 24. stages are similarly represented by 2B3L, 3C4M, and 4D0N.…
