The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 481

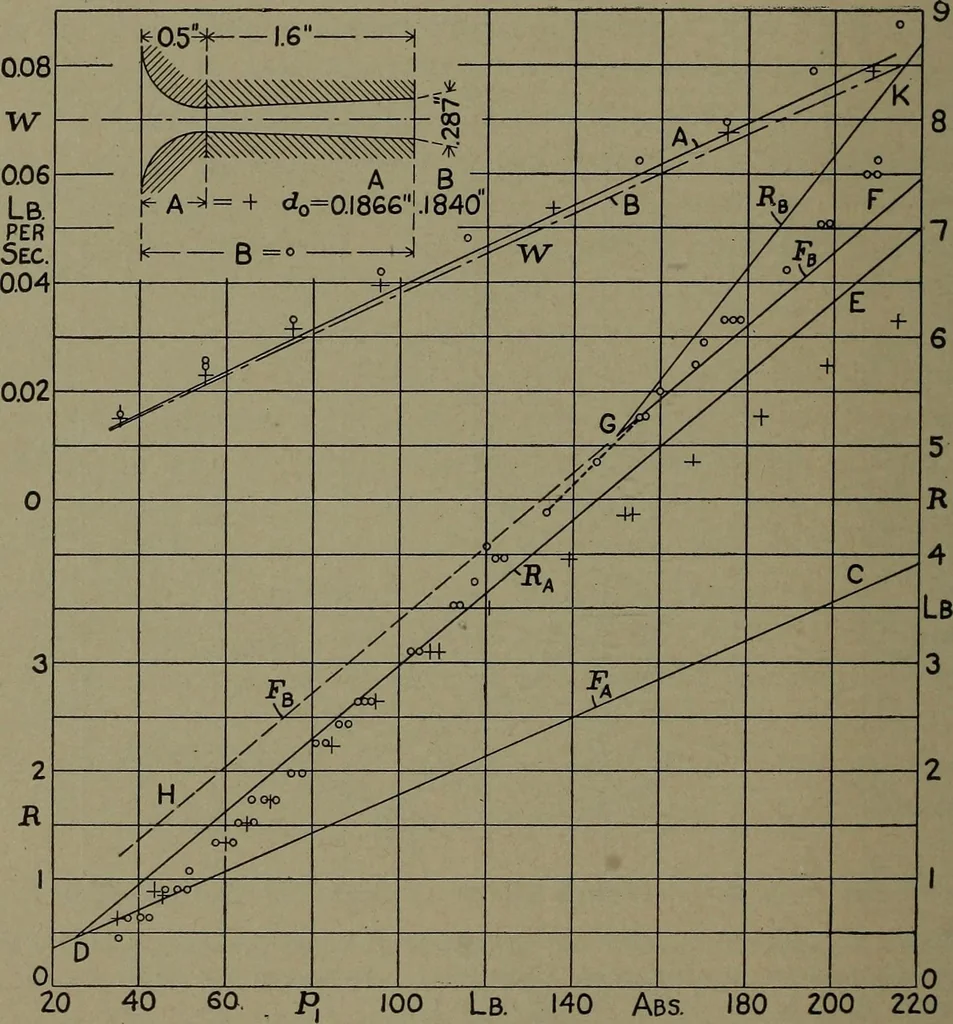

corresponding withmeasured pressure A, laid out in order that D may be compared withit. The steam was superheated at the start. In very peculiar fashion,temperature D at first falls below E; but it soon reverses relation andruns from 30 to 20 deg. above E. Rationally, after nearly… … Fig. 334. — Reaction upon the Nozzle, tests by W. Rosenhain, at CambridgeUniversity. Proc. Inst. C. E., 1900, Vol. 140, 199-220. worth while, difference in effective variant area ratio and in pressuregradient, due to the substitution of small wire for larger tube, wouldhave to be taken into account…
Steam-engines · Steam-turbines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
