The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 491

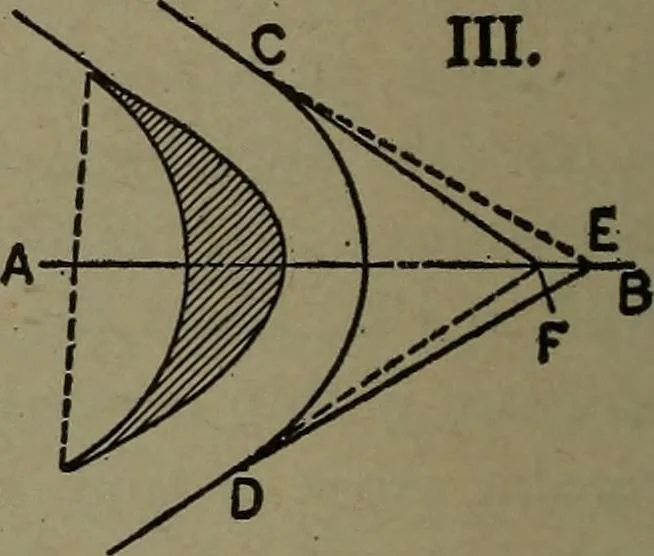

Fig. 337. — Behavior of the Jet in the Bucket or Vane Channel. represented by dotted lines. To compensate for this and get a largerdriving component from the reaction of the escaping jet, impulse vanesare now often made as shown at III in Fig. 337, with a narrower angleof exit ABD than of entrance…
Steam-engines · Steam-turbines
