The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 555

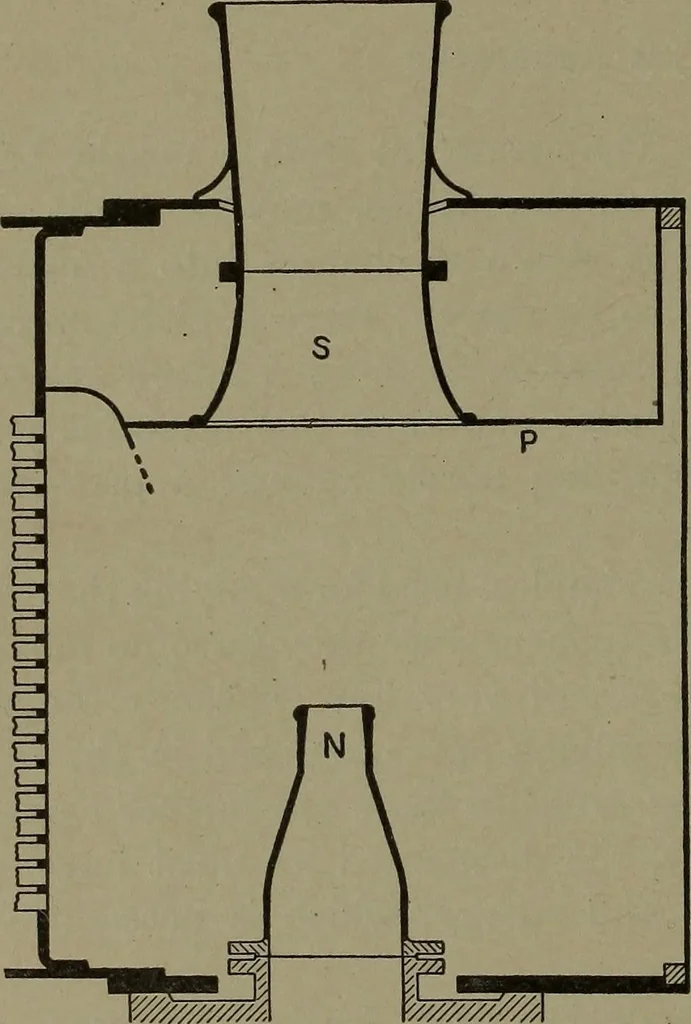

ANCES. [Chap. XI. into the smoke box, and a dead space is left above the horizontalpartition P. The second type of blower is illustrated by the example in Fig. 384,where a small jet of high-pressure steam is used for moving a stream ofair relatively much larger than that in the locomotive (as… … Y///////////A Fig. 383. — Locomotive Smoke Box.
Steam-engines · Steam-turbines
