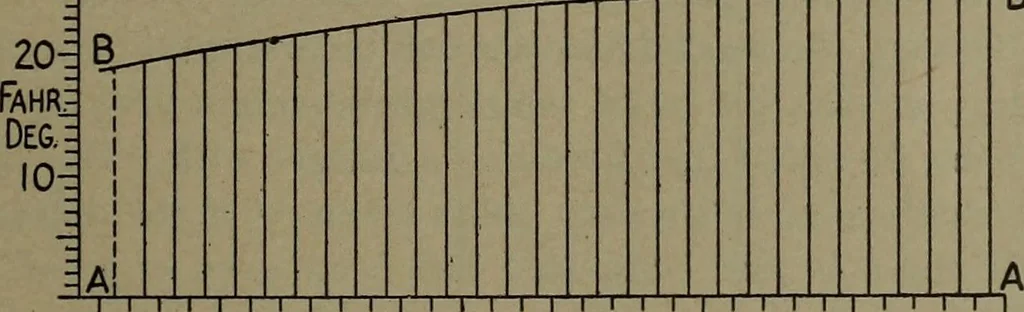

stantpressure is greater near saturation than farther out. The inverse ofthis, that the rise of temperature required for a certain increment ofvolume is less near saturation, is equally clear on Table-diagram VI.The divisions on the horizontal lines of constant pressure mark offtemperature… … 111111(111111111111 3 v 3.5 Cu. 4 Ft. 4.5 I i i 3 Fig. 42. 5 5.5 Temperature Intervals for Volume Increments of 0.1 cu. ft.,at 150 lb. Pressure. To show this up more strongly, the diagram in Fig. 42 is plotted,for the pressure used in the last two examples. The ordinate betweenbase AA and curve BB…
