The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 94

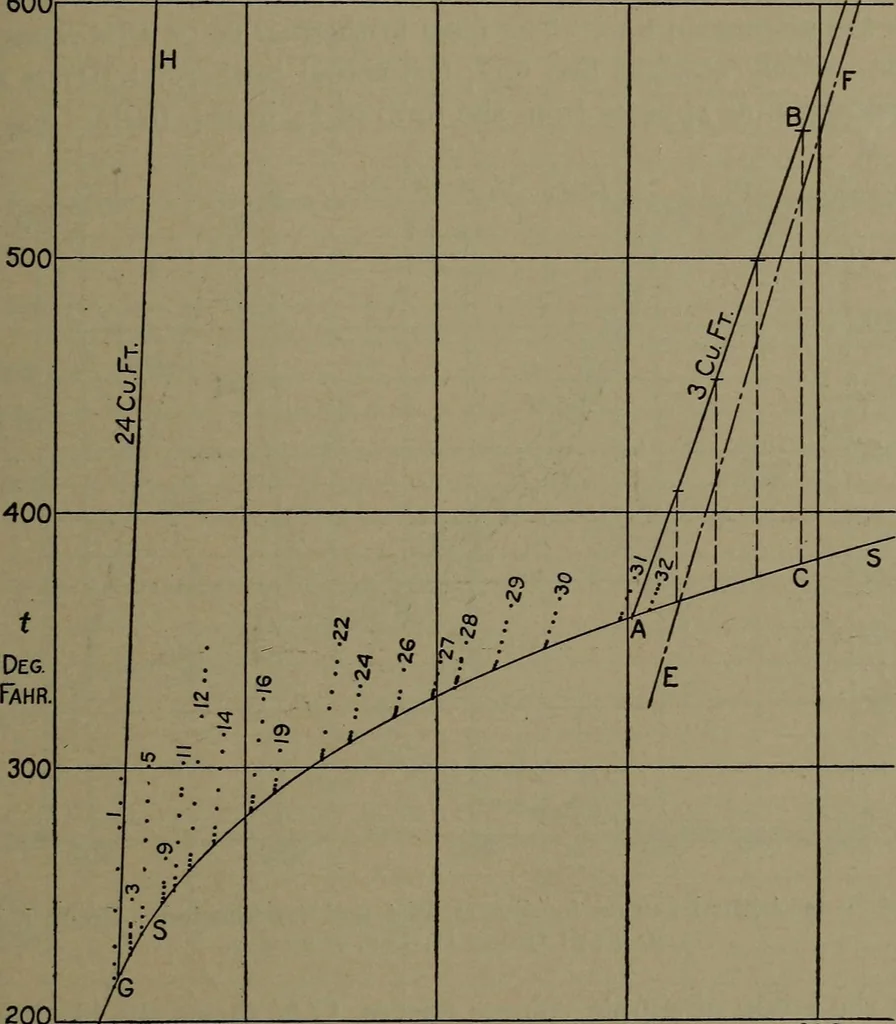

rtion of condensation as the temperature falls, butthe pressure (now independent of volume) will merely drop according § 12 (to)] THE PRESSURE AND VOLUME OF STEAM. 77 to the saturation relation. A quantitative illustration of this pro-gressive condensation will be found in § 13 (m) and Fig. 48. The… … 0 50 P 100 Lb.Abs. 150 200 Fig. 43. — Curves of Heating at Constant Volume, for Superheated Steam. that have as yet been made. In these, pressure and temperature werevaried together, while volume was kept constant and weight of steampresent was known. On these observations was based Lindes…
Steam-engines · Steam-turbines
