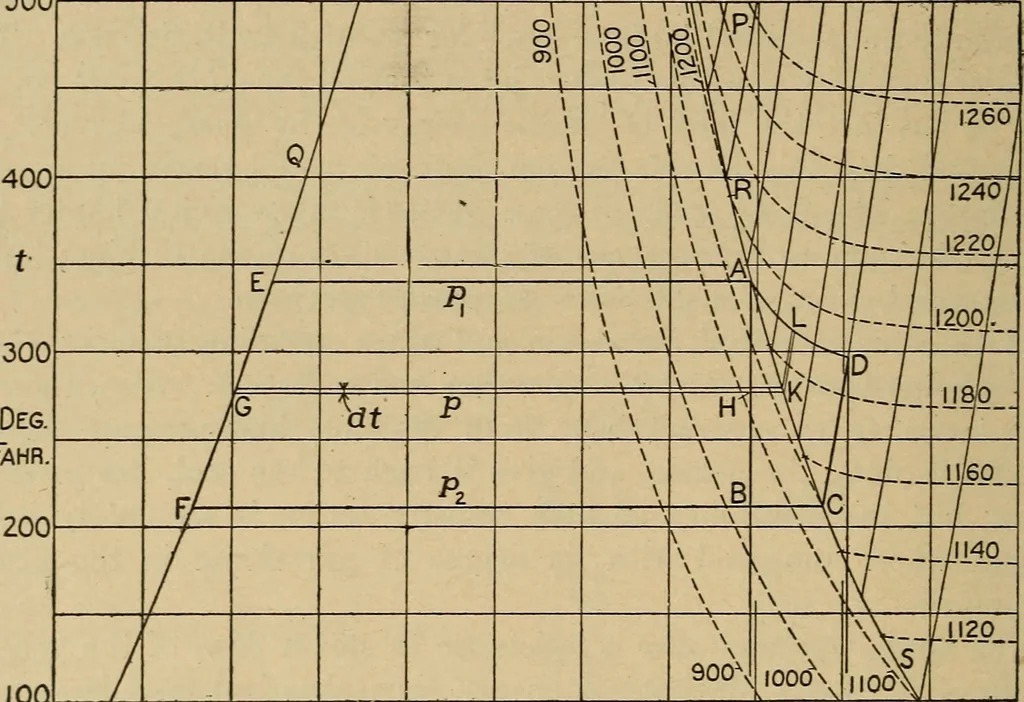

lue pi to a lower value p2, by free or unresisted expansion.It occurs whenever steam flows through a partly opened valve or someother restricted portion of its channel, so that pressure work is usedup in producing velocity and kinetic energy, but T\ithout any usefulappUcation of this energy. The… … Fahr 0.2 N 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2^.0 2.2 Fig. 66. — Temperature-entropy Diagram, to Show Throttling Effectand Lines of Constant Total Heat. through an orifice or nozzle from pressure pi to pressure p2. If thejet is perfectly formed, its kinetic energy wdll be equivalent to the areaEABF on…
