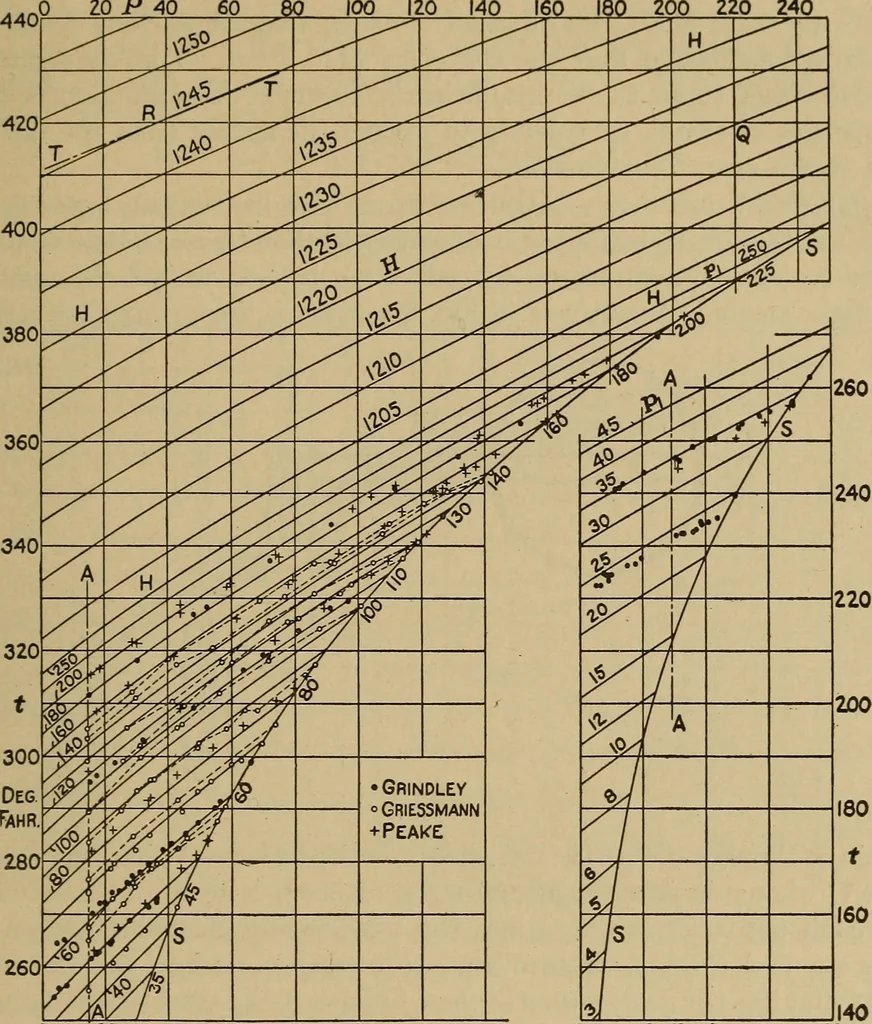

sents the temperature observed in .an experiment made witha particular p2. The purpose in plotting the points here is to comparetheir trend with the curves derived from Table VII, which itself islargely based upon these experiments. The more irregular points are § 17 m THROTTLING OR KINETIC… … 40 p 60 Lb.AbS. 100 10 P20 Fig. 68. — Fall of Temperature in Throttling, or Curves of Constant Total Heat ina Plot of Temperature t on Pressure p. For references concerning the throttling experiments plotted, see Note 7,page 617, Appendix. quite widely in detail, was in every case a throttUng…
