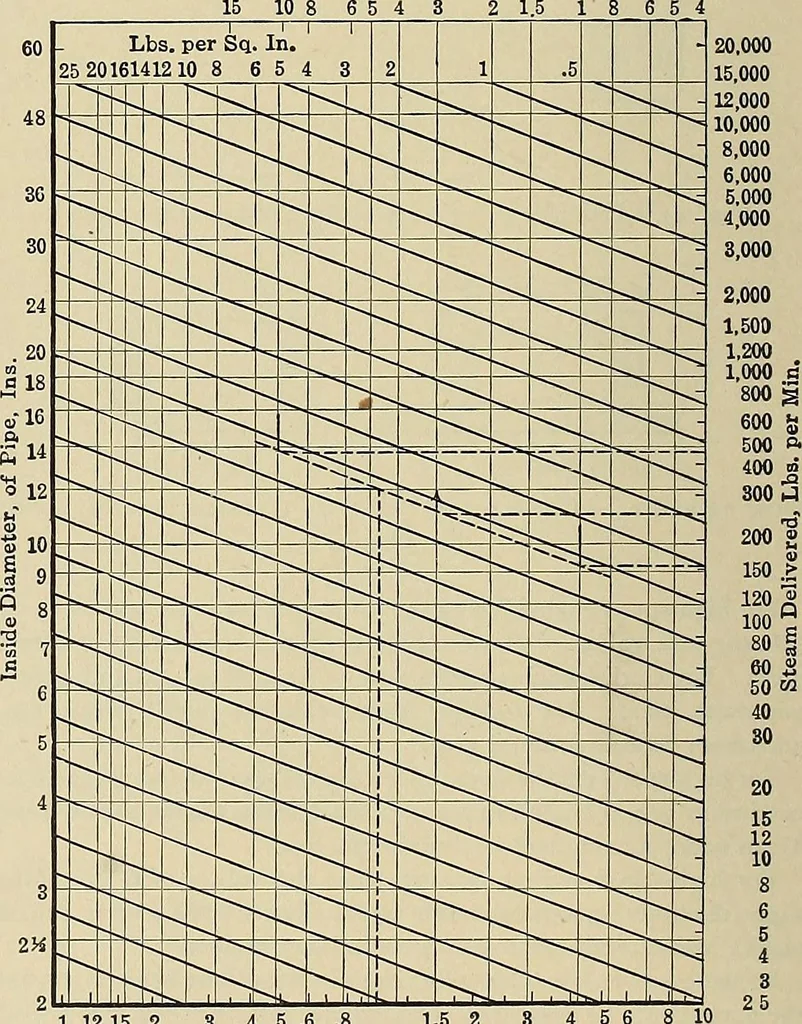

nvinced that the importance of this action is much exaggerated.Were it true to an appreciable extent, the effect of the increasedvelocity at mid-stroke would appear in the exhaust line. Thesteam is forced through the exhaust port at various velocities atdifferent positions of the piston, and if the… … .1.12 ,15 .2 .3 .4 .5 .6 .8 1.5 2 8 4.-.-- Loss of Pressure per 100 Ft. of Pipe, Lbs.per Sq.In. Fig. 18.From the desired presstire loss say .3 lb. per sq. in. per 100 ft. of pipe3 ins., thence diagonally to the vertical from the steam pressure, say 80quantity of steam delivered 20 lbs. per min.…
