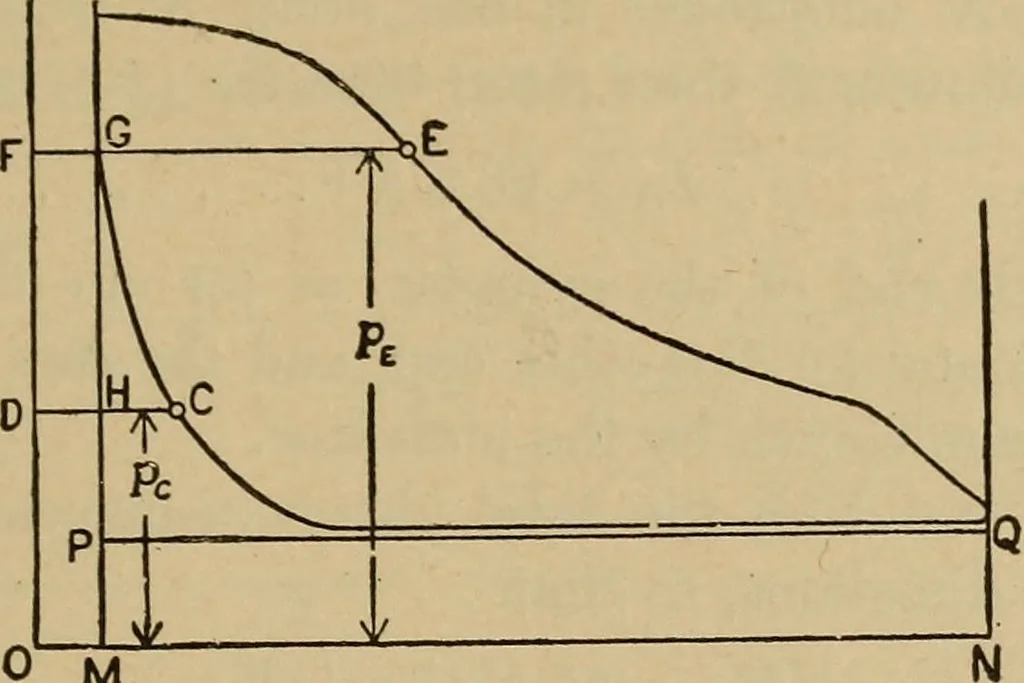

.01249 14.2211.75 44.8 i36.7 J 81.5 L C. 21 (e)J HORSE POWER AND STEAM CONSUMPTION. 165 {e) Indicated Steam Consumption. — The data needed for calcu-lating this quantity are outlined on Fig. 85, and the method of pro-cedure will now be described. When the piston is at the position definedby the… … 0 MFig. 85. —: Data for Indicated Steam Consumption. piston displacement F, which on the diagram is represented by thestroke line MN. The relations involved are e = FE MN Fe = eFcu. ft.; and the weight of steam (vapor alone) present in the cylinder at E is w^ = — = - X F. This measures the total…
