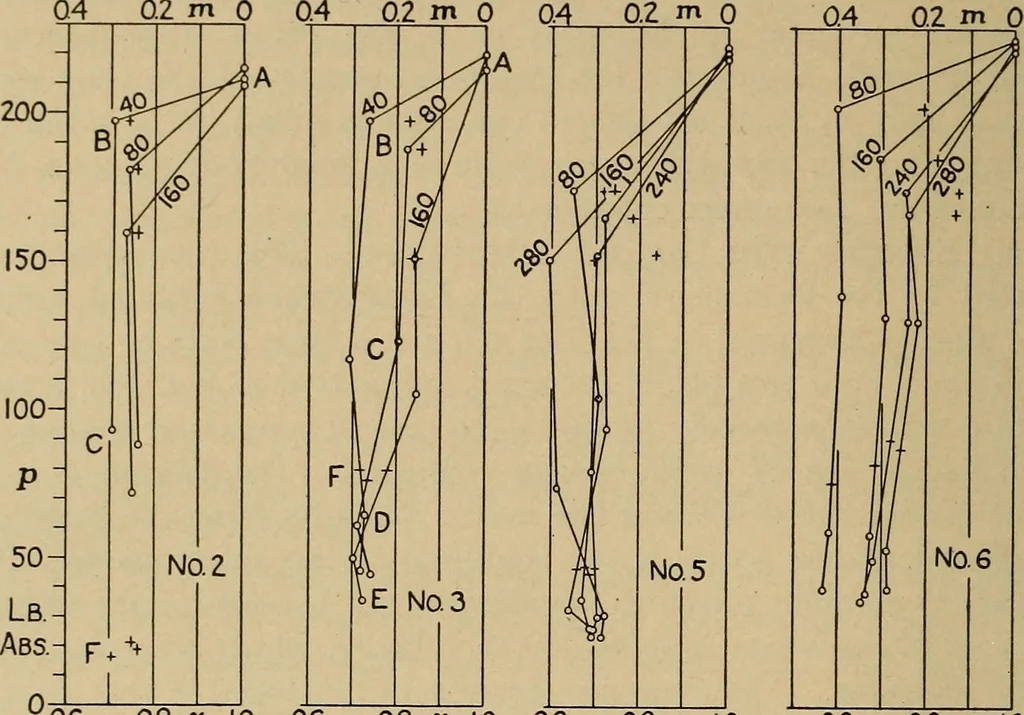

rne to it by the mi from an arbitrary formula, so 194 ACTION OF THE STEAM IN THE ENGINE. [Chap. V. that Fig. 105 is a much more useful type of diagram than the precedingfigures. For purposes of comparison, one simple engine is included;and the most striking thing brought out is the small gain in… … 0.6Fig. 105. 0.8 X 1.0 06 0.8 x 1.0 06 08 x |.0 0.6 0.8 x \0 Quality Diagrams, for four of the locomotives listed under Fig. 103. The basis of representation is partly responsible for the apparentfailure of the missing steam to decrease as the range of pressure in thecylinder is made less by…
