The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 272

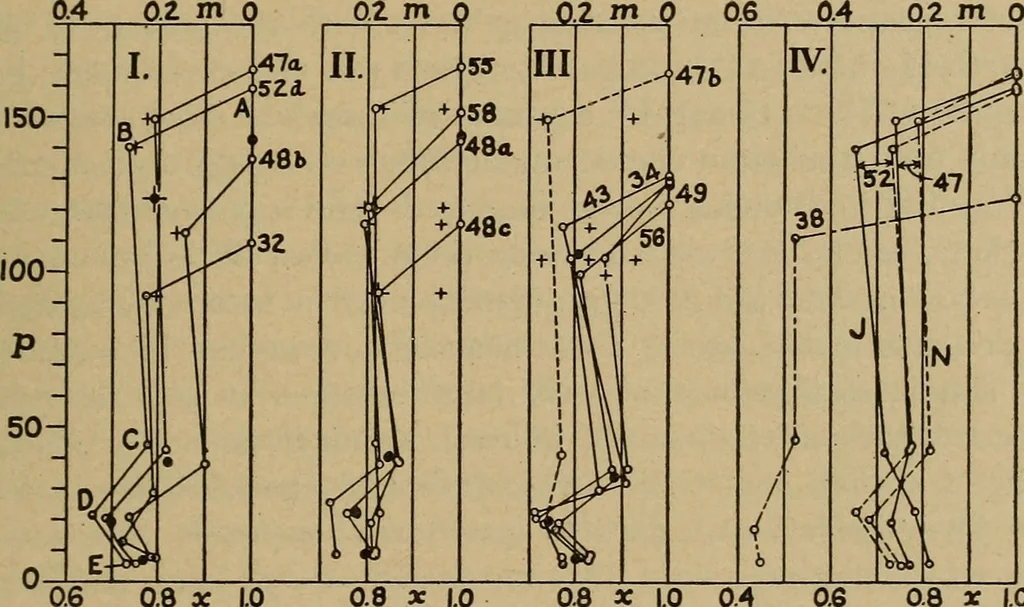

giventhe work AU per pound of steam, found from the diagram by planim-eter and expressed in B.t.u.: that these values do not quite agree withthose under W in Table 13 is due in part to unavoidable inaccuracy in re-drawing Fig. 137 from published diagrams, and perhaps also to the orig-inal use of… … 0.8 X 1.0 0.8 * 1.0 0.8 X 1.0 0.4 0.6 0.8 X 1.0 Fig. 138. — Quality at Critical Points, Compound Engines of Corliss or equivalenttypes, Barrus Engine Tests : original numbers used to designate tests. Group I. No jackets or reheaters. Group II. Reheaters only. Group III. Jackets and reheaters: No.…
Steam-engines · Steam-turbines
