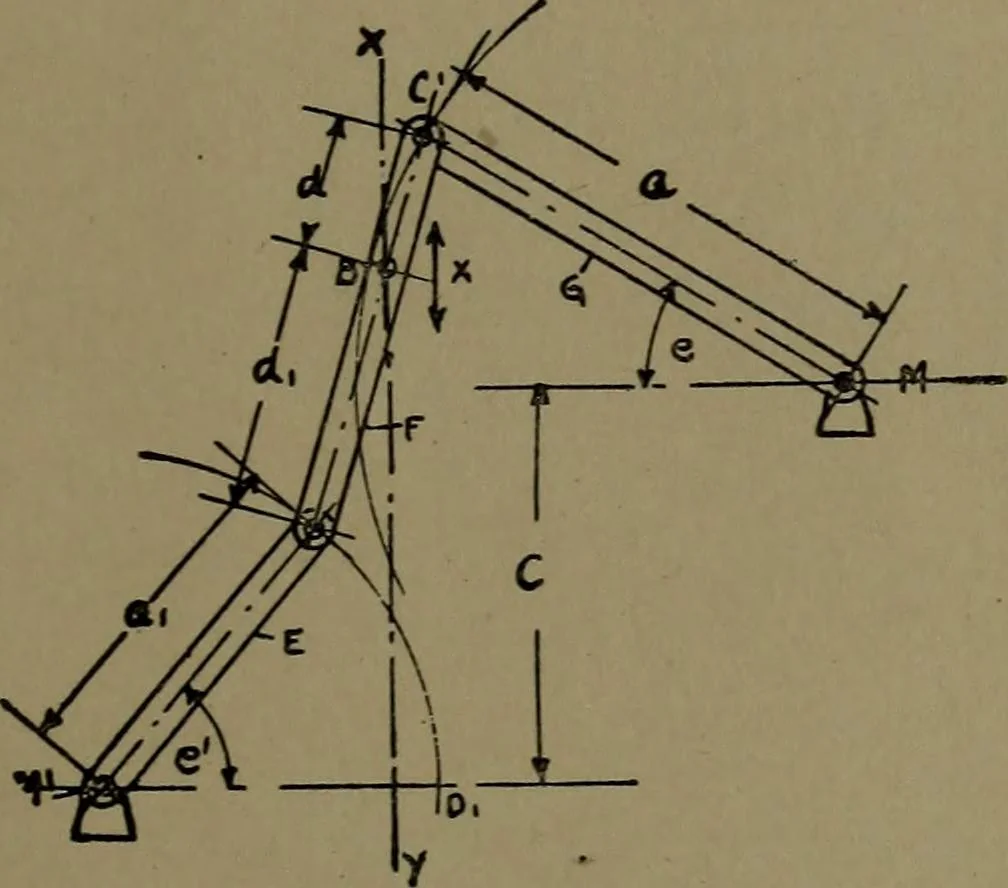

r pinion wheels which gearinto an internal cut ring. The change ofgear is obtained by simply holding or re-leasing the central pinion. Section XIX.STRAIGHT LINE MOVEMENTS. In the Design of Mechanisms of Many Kinds it is Often Necessary That Some Point or Part of the Machine Moves in a Straight Line… … LINE MOTION WITH TWOLEVERS AND ONE LINK.—Levers E and G are con-nected to link F. E is pivotedat M, swinging through anangle e at a radius equal to a.G is pivoted at M, swingingthrough an angle ^ at a radiusequal to a. F is 2, bar or linkconnected to the ends of barsE and G and having at 5 apohit…
