The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 348

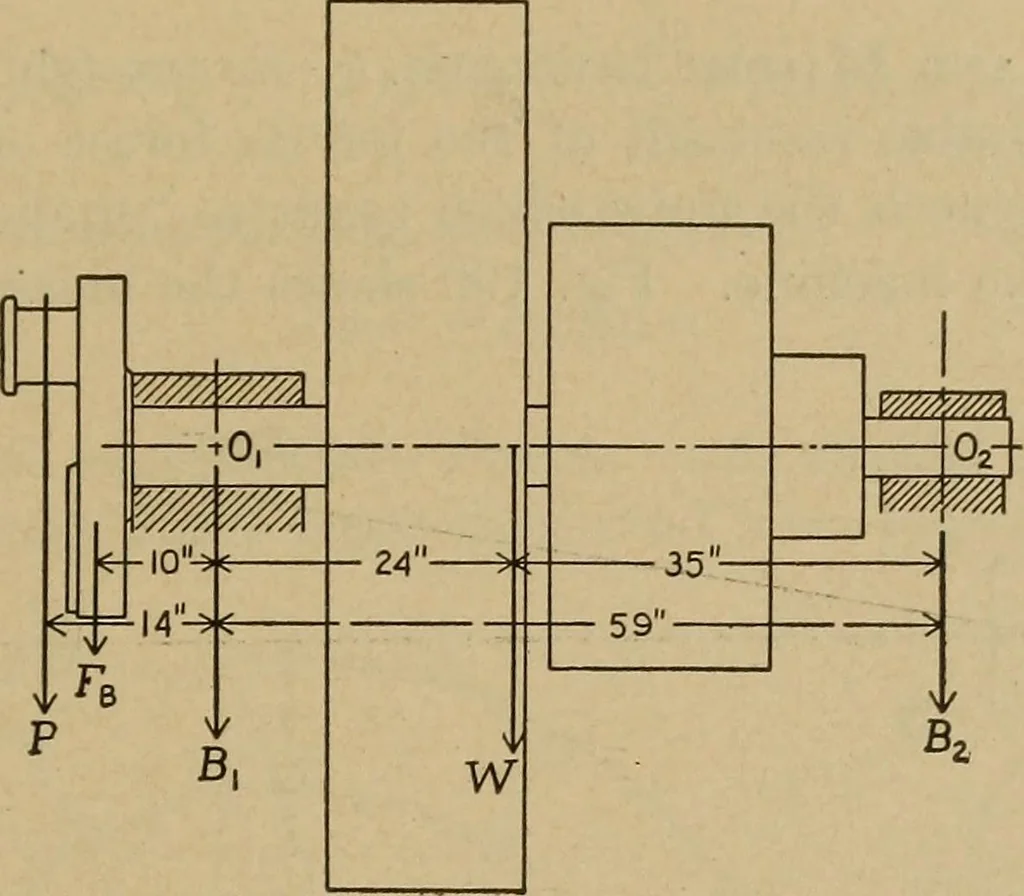

beside the wheel. The load being in the § 34 (/)] PRESSURES ON PINS AND BEARINGS. 333 form of a torque only, if the armature is properly centered in the field,the forces to be combined are the crank-pin pressure P, the free counter-force Fb and the weight W. With the dimensions on the figure,… … Fig. 188. — Outline of Engine Shaft. In Fig. 189 is shown a series of force polygons like Fig. 155 III, takenat equal intervals around the crank circle, and determining the pressureBi at the main bearing of Fig. 188. These diagrams, Uke all the others.
Steam-engines · Steam-turbines
