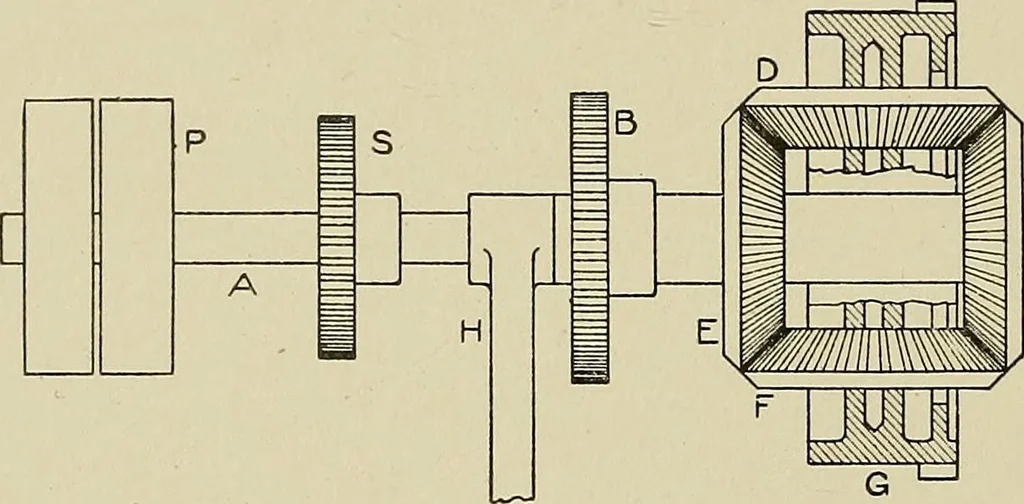

the driving pulley P, the gear for driving the spindles S,the bobbin gear and differential motion B, and the twist change gearT, which drives the front roll and top cone. The differential motion is a combination of six gears, namely,a square of four gears C, D, E, and F; a crown gear G, and… … C T S Pig. 135. Differential Motion. direction and carry the two bevels D and F around the other two,while they act also as intermediates to convey the motion from thedriving wheel C to E. The gears E and B are fastened together andrun loosely on the shaft. The bobbins are driven from B. Thebearing…
