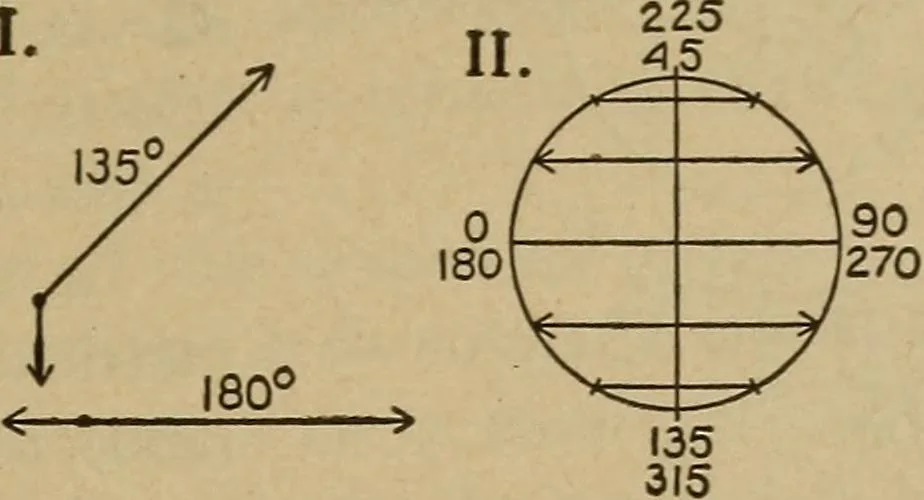

90 … Fig. 197. — Circular Diagram of Rod Effect. I. A so readily; but it appears that the determining point on the circle, orthe radius /o, will have to rotate twice as fast as the crank. In illus-tration, five positions of the radial forces are shown, with /o making acomplete revolution while Fq turns…
