The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 356

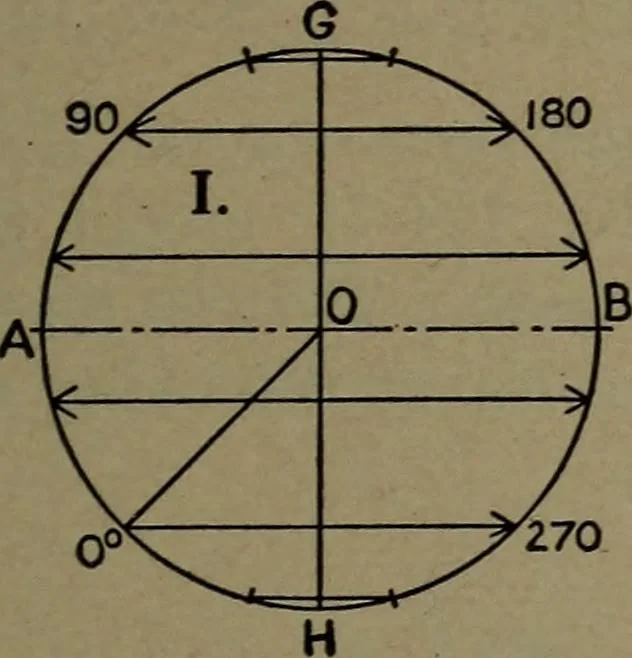

Fig. 194. — Combined Radial Effects. § 35 (d)] BALANCING THE ENGINE. 339 angle scale is located at the position which OC, Fig. 194, will occupywhen a for crank No. 1 is zero, or when OCi is on its zero dead center:and to get Sr we locate the actual value of a on this angle scale andmeasure over… … 270 C II. 1, 0 ZJS/ T ^Xoo 1 III. ■r Jz A( 1 /I < 0 1 /// / 11 c2 180 9 H Fig. 195. — Diagrams of Shifting Force. In Fig. 195 II, the diminution of OCi and OC2 by dJi and C2J2,each equal to Fb, is shown with the purpose of giving a clear idea ofthe size of the primary forces. Then the resultant…
Steam-engines · Steam-turbines
