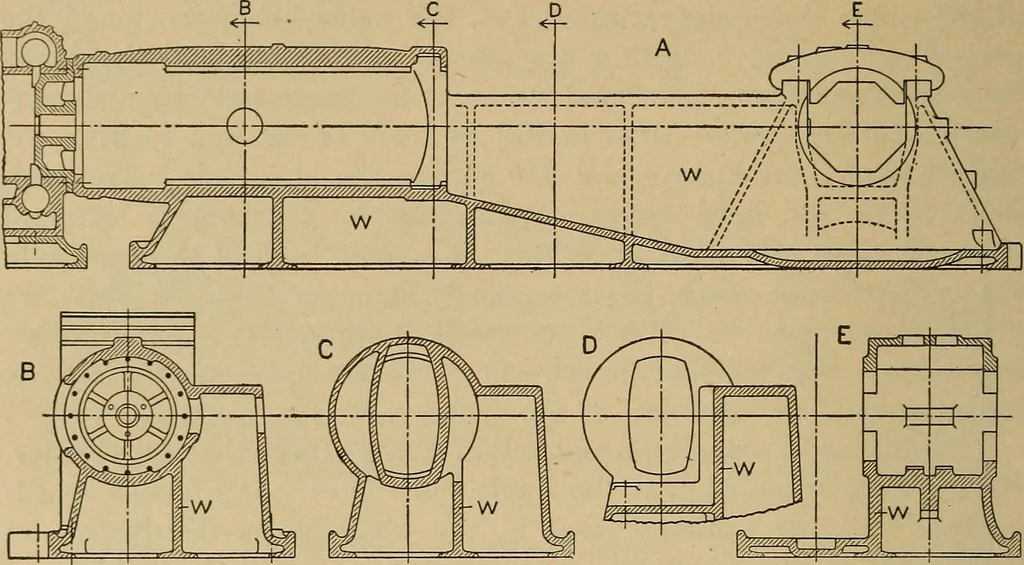

-connected to a genera-tor, there is usually an iron sub-base which extends out beneath thisbearing, so that the engine does not depend upon the masonry founda-tion for alignment. The slower-running Corliss (or equivalent) enginehas such a large wheel that the outboard bearing must be supported ona… … Fig. 204. — Frame of 26 in. by 48 in. Corliss Engine in Fig. 3. Scale 1 to 60. frame casting of the modern, heavy-duty Corliss engine described inChapter I; this is of the hollow, box form, with enclosed guides, andhas a full-length bearing upon the foundation. (c) The Piston. — Sectional views of…
