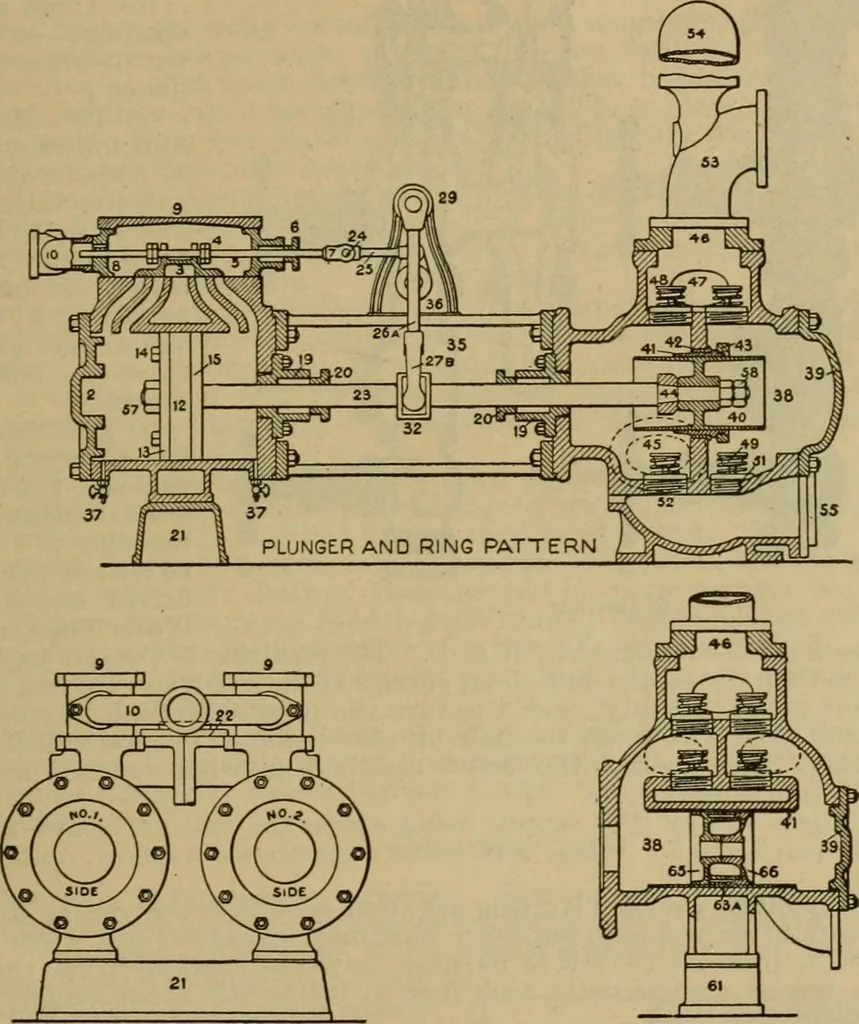

mp gets hot, water may be backing into it past the check valvefrom the boiler. (d) If an accident happens to a pump and there is no injector, stop the engine,close boiler valves, draw the fire, raise the flue caps, and close the damper. (e) If the suction pipe leaks, wrap sheet-rubber over the… … END VIEW OF STEAM CrLINDERS PISTON PATTERN WATER END 5. The Worthington Pump. 1. Steam cvUnUer (Nu. 1 aud 23. Piston rod. 42. Casing. No. 2). 24. Valve-rod head pin. 43. Binder. 2. Steam-cvlinder lieail. 25. Valve-rod link (long or short). 44. Plunger hub. 3. Slide valve. 26a. Long lever. 45. \\…
