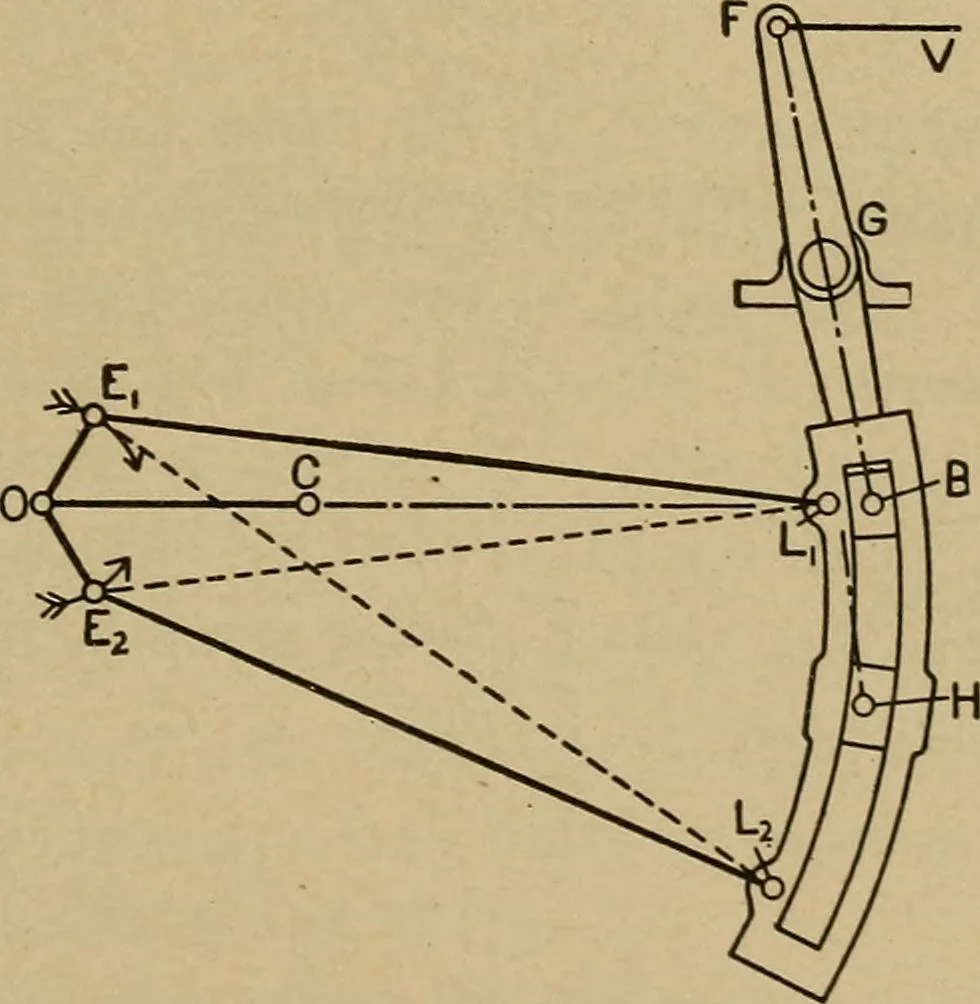

olution of the shaft, the two rodswill be part of the time clear of eachother, as here, part of the timecrossed, as in Fig. 242. The dis-tinction is made by turning the shaftso that the two eccentric centers Eiand E2 are toward the link, orbetween the hnk and a vertical center fine through 0; and… … FiG. 244. — The Indirect Link Motion. 386 VALVE GEARS AND GOVERNORS. [Chap. VIII. senting the action of the hnk motion is not quite exact, because somesmall secondary movements of the Unk are not taken into account.Further, the proof of the statements as to proportionaUty along theeccentric locus…
