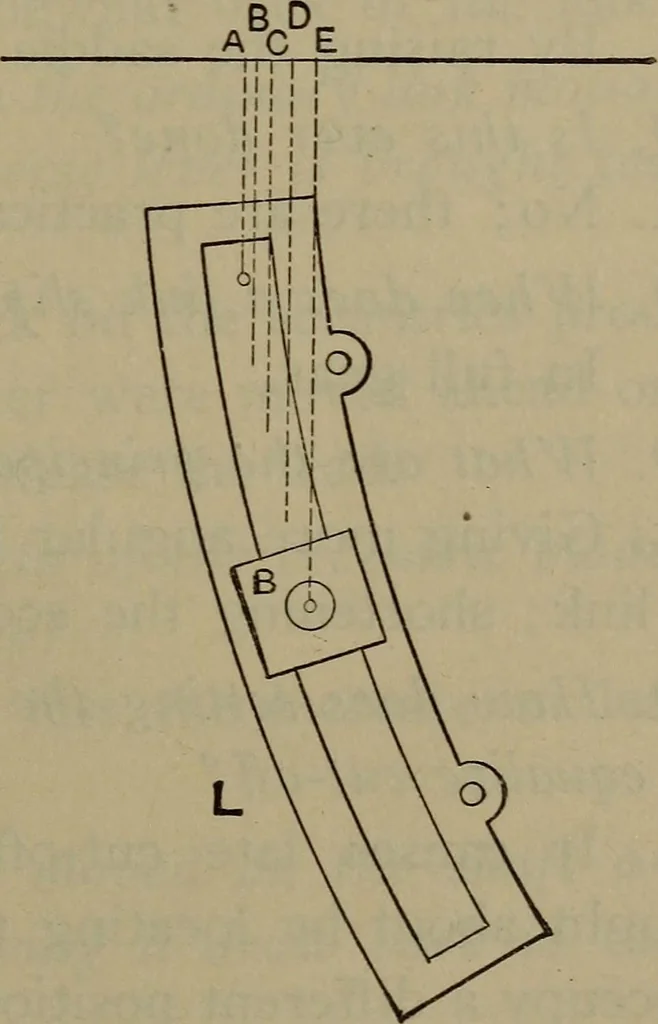

Figs. 162 and 163.Reversing Action of Link. Fig. 164Stephenson Link. 262 LOCOMOTIVE CATECHISM. In both figures R is the rock-shaft center, U the upperrocker-pin center, B center of the lower rocker pin and of thelink block, and the heavy curve L the center arc of the link.The vertical lines through…
