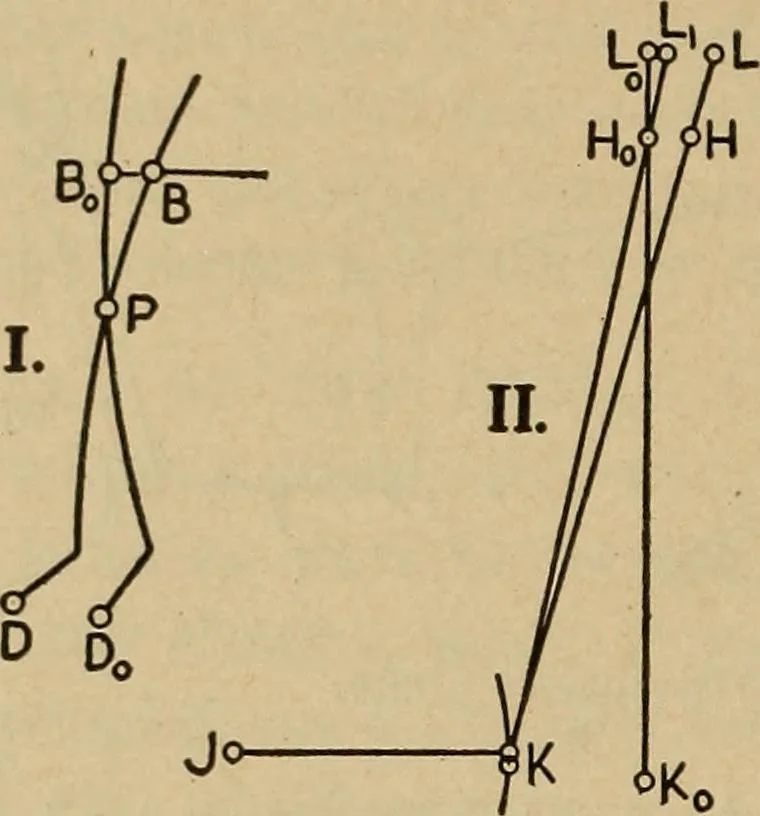

as in the Stephenson gear, Fig. 242. (h) Geometrical Relations. —At I in Fig. 251, BqDo is the mid-dle position of the link, with crank on dead center, while BD is the sameas in Fig. 249. Let eccentric radius OE = r, DP = /bo, BP = k, alsolet maximum BP upward = ki and maximum BP downward = k2.The…
