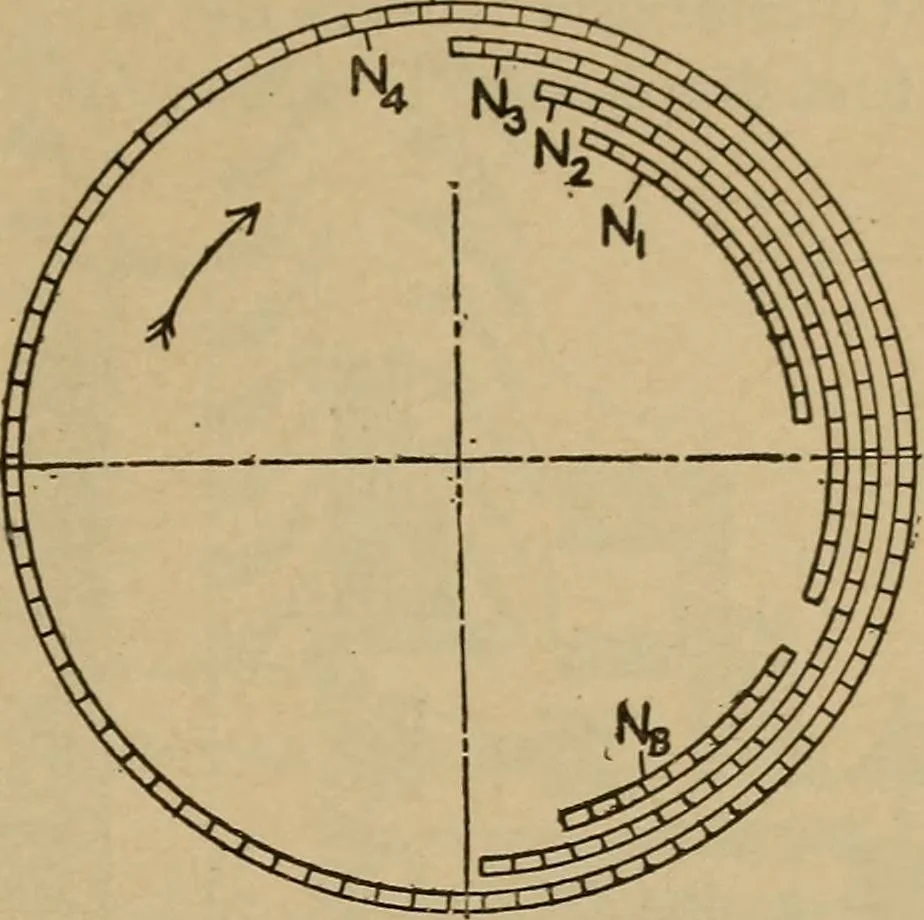

Jfmm Fig. 21.—Three-impulse Ele-ment of a Curtis Turbine. … Fig. 22. — Diagram of the Nozzle Ad-missions in the Curtis Turbine. nozzles N; passing through the first vane row Vi, it is discharged intothe fixed guide vanes Gi, which deflect it back into the proper directionfor driving, and deliver it upon the second row V2 of moving vanes;and after a…
