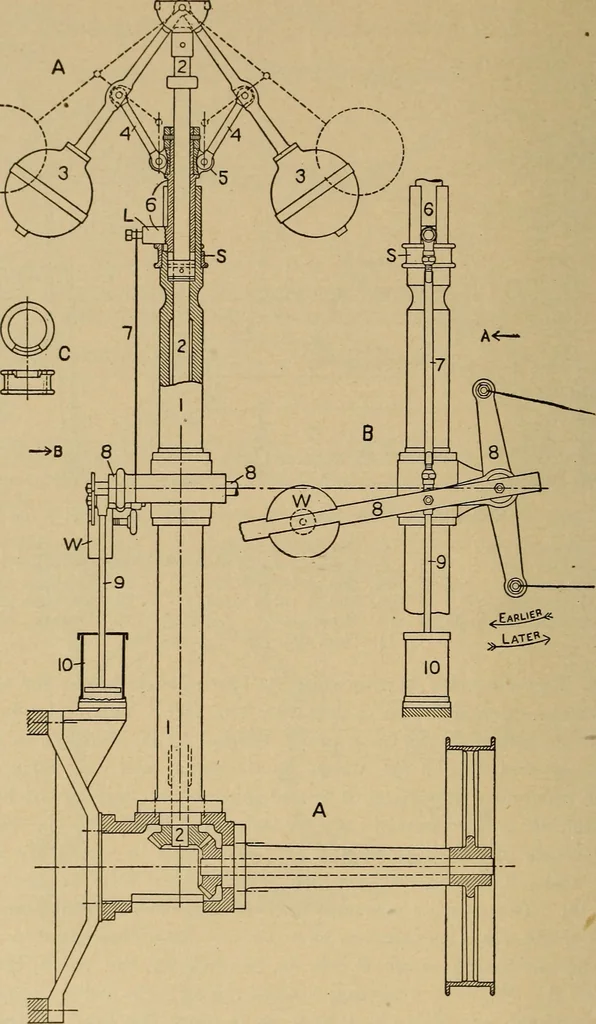

ward the left, the valve is closed fromthe previous cut-off, and at rest; as 6 nears the limit of travel, thelatch L slides over the catch pin P, going just a little way past the en-gaging point. As the crank is pulled toward the right it turns thevalve stem with it, until the trip arm T strikes… … Fig. 268. — The Governor.1. Governor standard. 4. Lifting links. 8. Governor rocker. 2. Governor spindle. 3. Weight arms. 5. Lifting ring. 9. Dashpot rod. 6. Lifting sleeve. 10. Dashpot. 7. Lifting rod. 43 (c)] THE CORLISS VALVE GEAR. 407 It will be noted that all the hooking and tripping surfaces…
