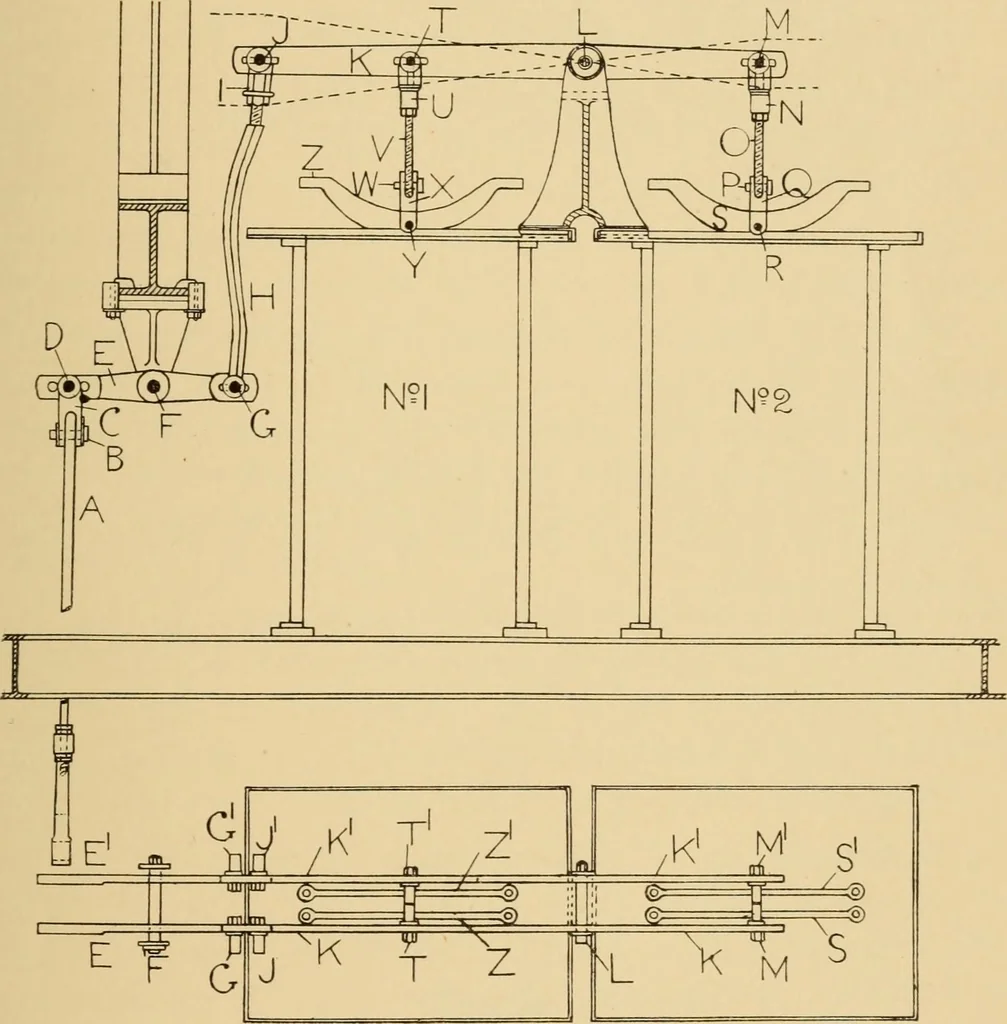

ink 1, pivoted to the stud J in the headlever k fulcrumed on the stud l in the bracket fixed to the top ofthe two Jacquards as shown. The free end of lever k is connected DOUBLE LIFT JACQUARD MACHINES. 115 with the bottom griffe of No. 2 machine on the principle of the firstorder of levers. An… … Fig. 113. The top griffe of No. 1 machine is similarly connected to thehead lever k, acting at this point as a lever of the second order,through the stud t, swivel link u, bolt v, stud w, swivel link x, study and cross head z. These parts are respectively duplicates of partsm to s inclusive. In a…
