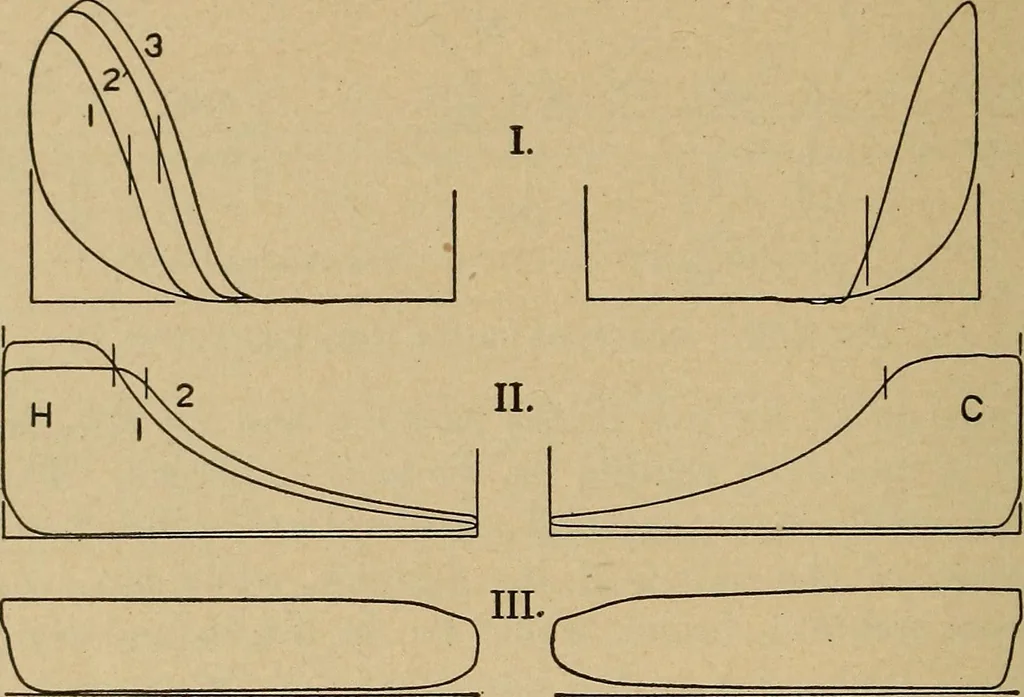

taneous indicator diagrams are given at II. For the head end, the twot\^es of diagram agree very well in proportions, the short vertical linesshowing where cut-off takes place. These are first located on II, thentransferred to I with due regard to the difference in length of the dia-gram. The… … Fig. 274. — Indicator Diagrams from the Engine in Fig. 267. a sharp and usually rather early cut-off, release deferred till near theend of the stroke, and a compression curve which begins late but risesrapidly on account of the small clearance. At III is shown whathappens when the boiler pressure…
