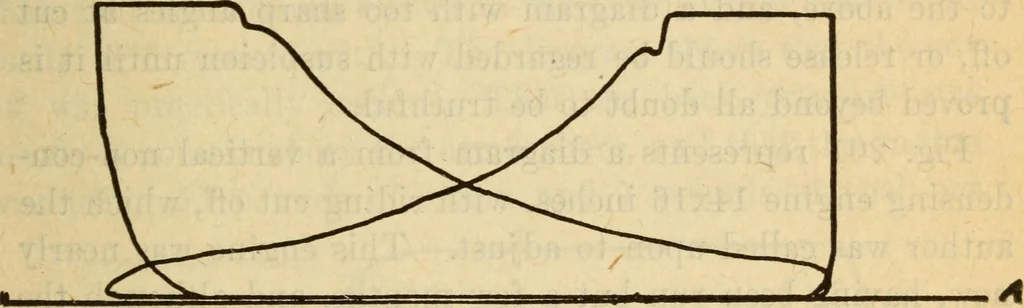

according to the ordin-ary rules for valve setting, by the marks placed on the endsof the valves and valve chests. These diagrams are in-troduced especially for the purpose of showing the need of Diagram Analysis 513 exercising the greatest of care to prevent dirt or grit ofany kind from getting… … Fig. 199 obtained. It showed the valve adjustment to be verynearly correct, but the perfectly straight steam lines, andthe sharp corners and sudden drop at cut off were a puzzle,especially in an old engine where the valves and valve seat*
